A battery that cranks the engine is not necessarily a sound one. It starts the car today, in moderate heat, and fails after two days parked — and the technician who judged it by a successful start judged a symptom, not a condition.

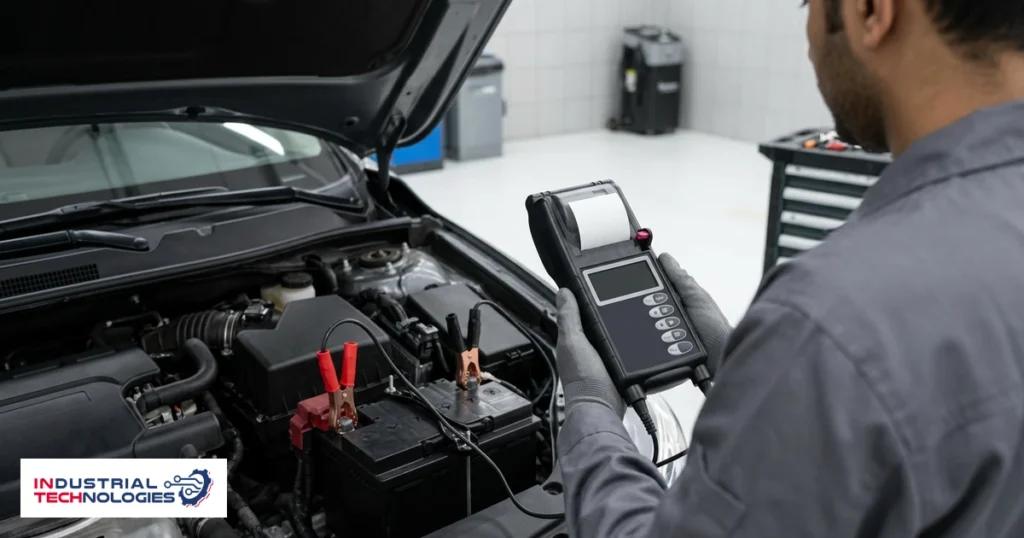

That is why a workshop battery tester has become an item of its own in the bay rather than an accessory to the general diagnostic scanner.
Battery test or system test
The same complaint — the car will not start in the morning — can be an exhausted battery, an alternator that is not charging, or a current drain while parked. The three are fixed three entirely different ways.
The family publishes the Midtronics MDX-P300 battery and electrical system analyzer, with an integrated printer, and the name states the scope: the battery and the system around it, not the battery alone. A workshop replacing battery after battery for the same customer has not diagnosed anything yet; the drain that consumed them is still there.
High voltage is another category entirely
With electric vehicles in the bay there are two systems, not one: the conventional 12 V system, and a high-voltage pack with a different testing logic.
The same family publishes the Midtronics xMB-9640 high-voltage module balancer, described as the supplier’s third generation of EV battery service tools. Balancing here is not a test but work: modules within a pack drift apart in condition over time, and the weakest limits the whole pack. Whether a workshop can address a range complaint without replacing the pack depends on having that capability.
What comes before the purchase
Selection starts from two questions: which makes the workshop services, and how deep the work goes — reading faults, programming modules or calibrating after a collision.
High-voltage work adds a third question that comes before the equipment: are isolation and lock-out procedures, insulated tools, a marked area and a technician trained for that specific work in place? Without them the equipment cannot be used safely.
Heat enters the reading
Battery condition is read in the context of temperature, and in the Kingdom’s climate that is not a marginal detail. A battery working in high heat all year ages at a different rate from one in a temperate climate.
Periodic testing in this environment is therefore built on a schedule rather than on complaints — especially in a fleet that parks a lot and runs in high heat, where a battery test costs far less than a vehicle stranded on the road.
| System | Published model | Scope |
|---|---|---|
| Conventional 12 V | Midtronics MDX-P300, with integrated printer | The battery and the electrical system around it |
| High-voltage pack | Midtronics xMB-9640 | High-voltage module balancing, a different logic entirely |
| Selection inputs | Makes serviced and depth of work | Reading faults, programming or calibration |
| High-voltage prerequisites | Procedures, insulated tools, marked area, trained technician | In place before the equipment, not after |
Frequently asked
Does a general scanner replace a battery tester?
Usually not. A scanner reads fault codes; a battery tester measures storage condition and cranking capability, which is a different measurement. Electrical faults often pass without a code.
Is battery testing worth it in a rental operation?
Yes, and it is one of the highest-return items there: a vehicle that leaves with a customer and then stops costs many times the test. What changes in that sector is set out on the car rental page.
Where are the detailed specifications of these units?
The specification for the model you need is requested directly through the quotation form.
Is the high-voltage balancer needed from day one?
It follows the share of electric and hybrid vehicles in the work and whether high-voltage procedures are in place. The 12 V analyzer serves every vehicle that enters; the balancer serves the packs, and the prerequisites for working on them come first.
