INTECH X360 paint booth with ROCKWOOL walls
The INTECH X300 figures — 20,000 m³/h supply, 18,000 m³/h exhaust, 11 kW — inside 50 mm ROCKWOOL walls, on a base with three rows of grille. Aimed at the workshop that wants a fire-resistant wall without moving up to the higher-extraction class.
Overview
This model at a glance
Key features
What the standard supply includes
- 50 mm ROCKWOOL wall panels

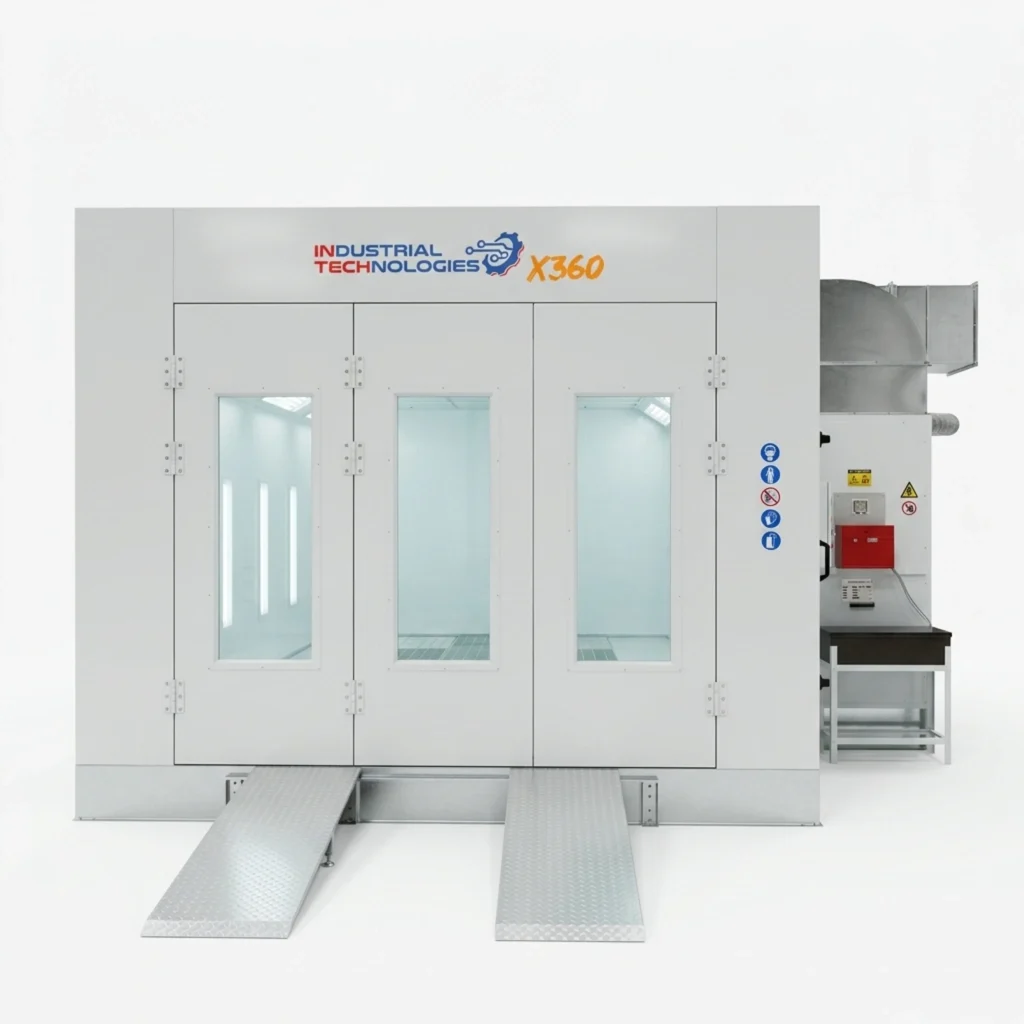

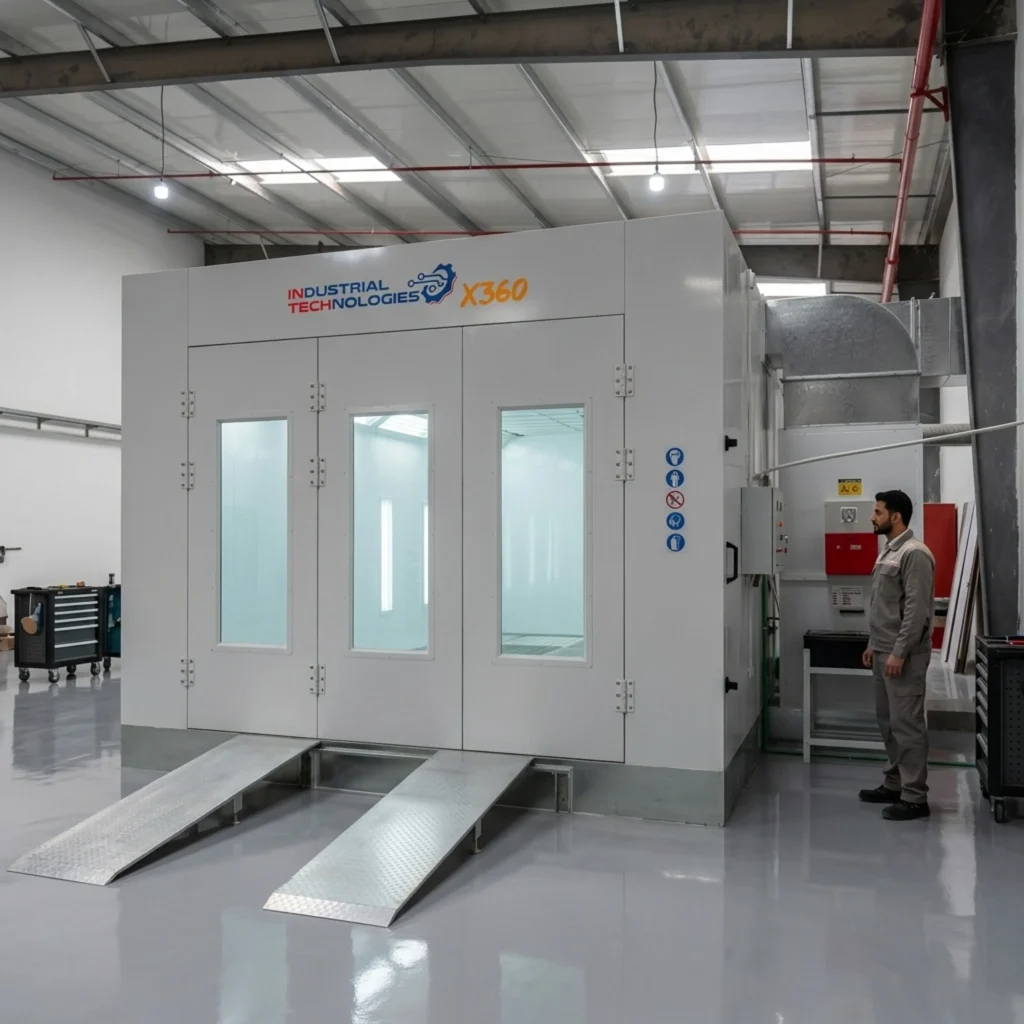

- three-leaf 3000×2600 mm main door with an observation window
- two 3 kW centrifugal supply fans and a 4 kW exhaust fan at 600 Pa
- electric damper switching between paint and bake
- 300 mm base: 2 rows of embossed plate and 3 rows of grille
- high-efficiency ceiling filter holding over 98% of particles above 5 μm
- 45° LED lighting: 32 ceiling and 12 side fittings at 18 W
- argon-arc welded SUS304 heat exchanger and Riello G20 burner, 200,000 kcal/h
Engineering basis
What makes the difference in daily operation
A mineral-wool wall
The 50 mm ROCKWOOL panels are a fire-resistant mineral material that holds baking heat inside the chamber and damps fan noise into the workshop. That is why this model is also offered to the woodworking and furniture sector alongside the automotive ones.

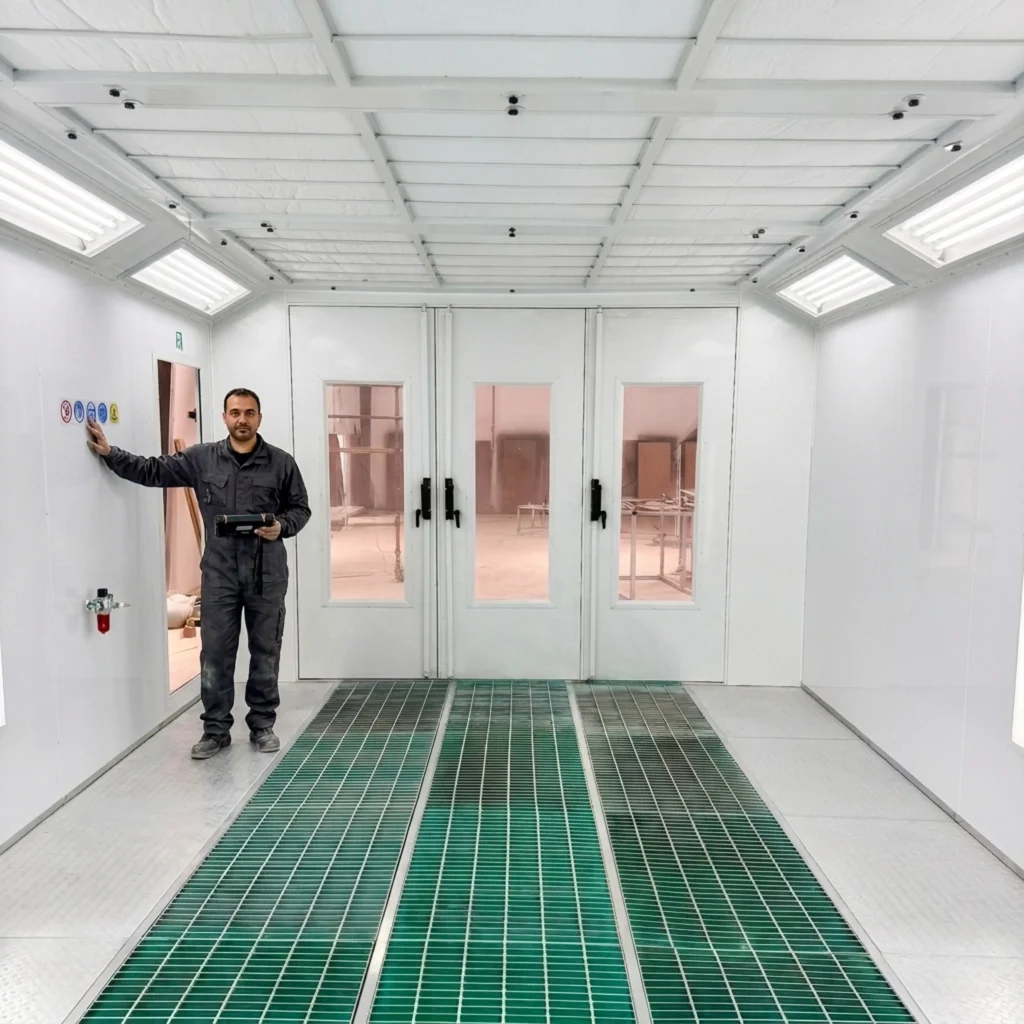

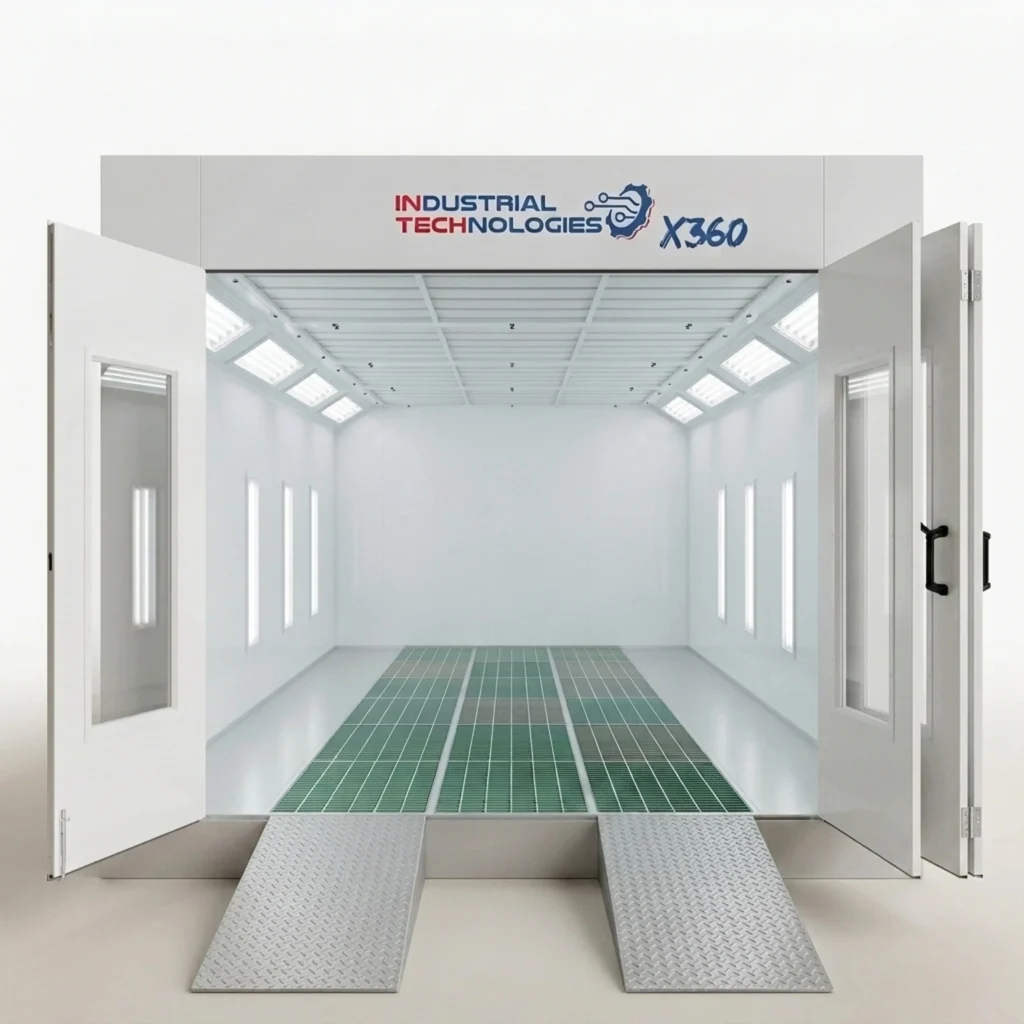

A base with three rows of grille
Three of the five base rows are grille, a larger floor extraction area than the INTECH X300, so overspray is drawn downward away from the workpiece.
Specifications
INTECH X360 specification table
| Specification | Value |
|---|---|
| Internal dimensions L×W×H (mm) | 6900×4000×2650 |
| External dimensions L×W×H (mm) | 7000×5300×3400 |
| Main door (mm) | 3000×2600 |
| Main door type | three-leaf sheet metal with a square observation window |
| Work door (mm) | 800×2000 with observation glass and pressure relief above 10 Pa |
| Supply air (m³/h) | 20,000 |
| Exhaust air (m³/h) | 18,000 |
| Supply fan | two centrifugal fans, 2×3 kW |
| Exhaust fan | 4 kW fan |
| Fan pressure (Pa) | 600 |
| Air speed (m/s) | 0.25 |
| Air changes per hour | 280 |
| Damper | electric, switching paint and bake modes |
| Filtration | non-woven pre-filter (above 15 μm) · high-efficiency ceiling filter (over 98% of particles above 5 μm) · EU2 fibreglass floor filter |
| Lighting | 45° LED fittings: 32 ceiling and 12 side, 18 W each, ≥800 lux |
| Heater / burner | Riello G20 diesel burner |
| Heat output (kcal/h) | 200,000 |
| Heat-up time | 5–7 minutes from 20 °C to 60 °C |
| Heat exchanger | SUS304, argon-arc welded |
| Chimney (m) | 5 |
| Wall type | 50 mm ROCKWOOL panels |
| Base | 300 mm high, 40×80 galvanised tube · 2 rows of embossed plate and 3 rows of grille |
| Control system | paint · paint with rising temperature · bake · temperature and time setting · lighting · alarm |
| Protection | emergency stop · over-temperature, overload and phase-loss protection · Schneider relays and contactors |
| Total power (kW) | 11 |
| Voltage | 380 V 3-phase 60 Hz |
| Entry ramps (mm) | 550×2000, embossed plate |
How it differs
How the INTECH X360 differs from its nearest model
The INTECH X300 is the same booth with identical air and power figures, with EPS walls instead of ROCKWOOL and two rows of grille instead of three.
The INTECH X960 carries the same ROCKWOOL wall, but with 25,000+25,000 m³/h of air, 17 kW, PLC touch-screen control and a four-leaf glass main door.
The 6900×4000×2650 mm chamber, the burner, the heat output and the ceiling filtration are the same across all INTECH models.
Industries
Sectors this model serves
These are the industries the INTECH X360 serves specifically, not the family as a whole.
FAQ
Common questions about the INTECH X360
How does a ROCKWOOL wall differ from an EPS wall?
ROCKWOOL is a fire-resistant mineral wool; EPS is a flame-resistant panel. Both are 50 mm thick, and the difference lies in the material, not in the air or power figures.
What is the air capacity of the INTECH X360 paint booth?
20,000 m³/h from two 3 kW centrifugal supply fans and 18,000 m³/h from a 4 kW exhaust fan, at 600 Pa.
What electrical supply does the INTECH X360 need?
11 kW on a 380 V, 3-phase, 60 Hz supply, the same as the INTECH X300.
Is there a ROCKWOOL model with higher extraction?
Yes. The INTECH X960 combines the ROCKWOOL wall with 25,000+25,000 m³/h and PLC touch-screen control.
How is the INTECH X360 heated?
By a Riello G20 diesel burner rated at 200,000 kcal/h through an argon-arc welded SUS304 exchanger, from 20 °C to 60 °C in 5 to 7 minutes.
