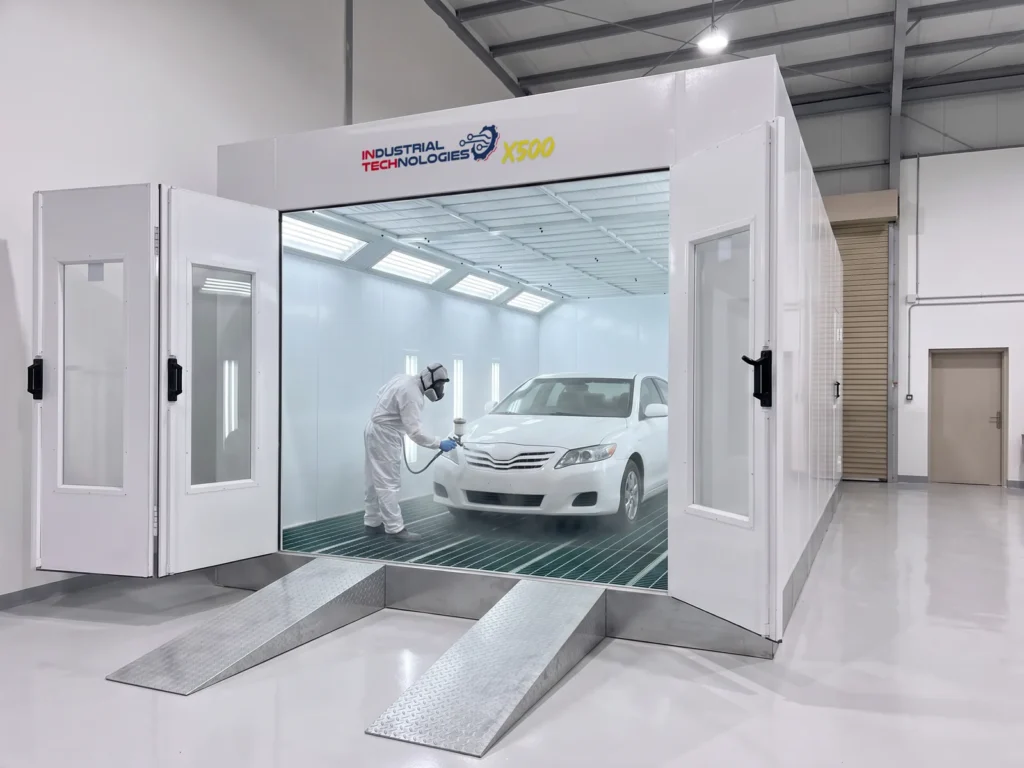

INTECH X500 paint booth: the high-extraction base model
The base model of the higher-extraction class: a 7.5 kW turbine supply fan and a matching exhaust fan deliver 25,000+25,000 m³/h, with a pneumatic damper switching between paint and bake and a full-grille base. Aimed at the workshop running more than one shift or painting larger vehicles.
Overview
This model at a glance
Key features
What the standard supply includes
- 7.5 kW turbine supply fan and 7.5 kW turbine exhaust fan at 650 Pa
- pneumatic damper switching between paint and bake

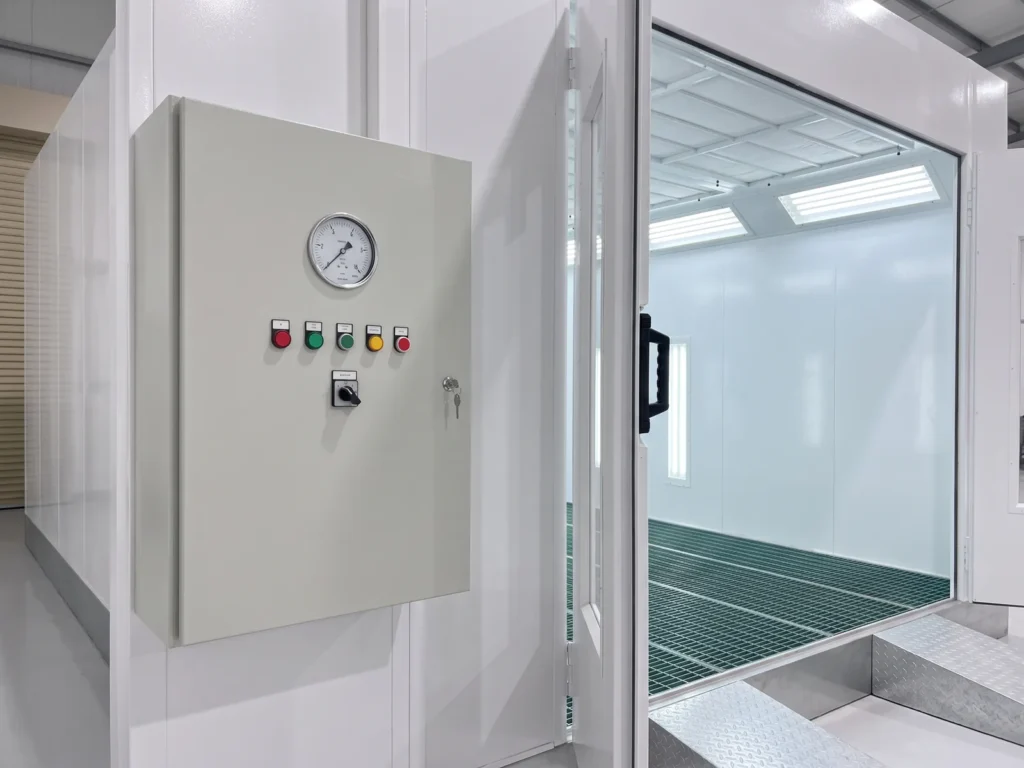

- round pressure gauge in the control box showing filter loading

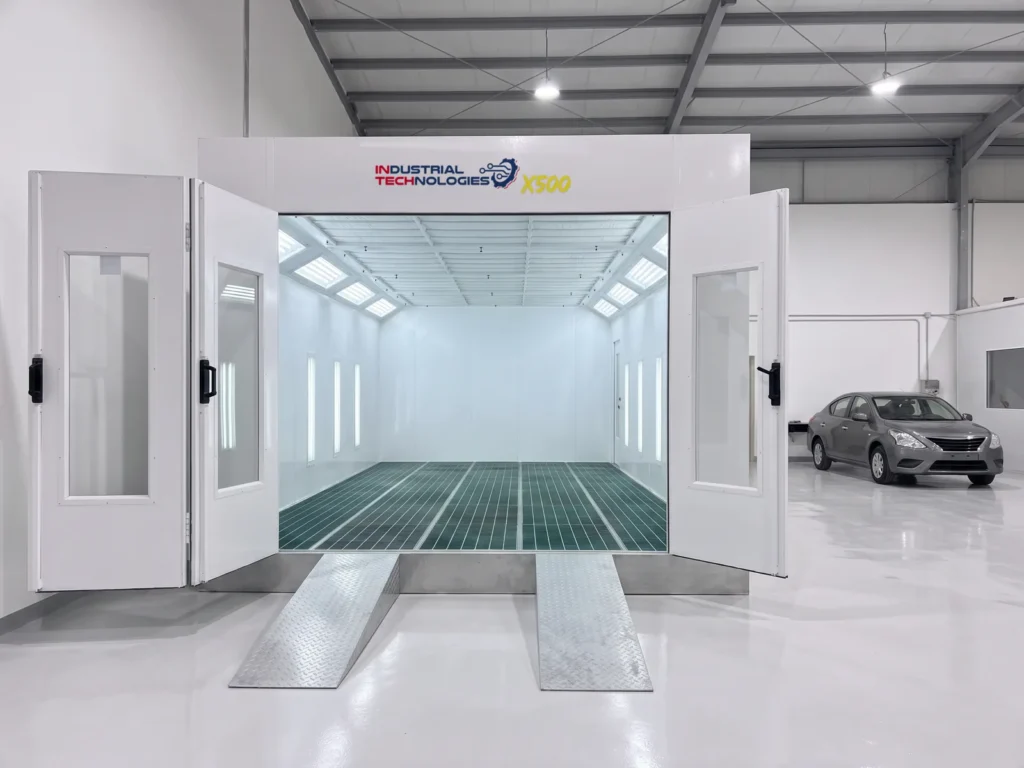

- full-grille base of five rows, 300 mm high
- 50 mm flame-resistant EPS walls on a 0.426 mm steel skin

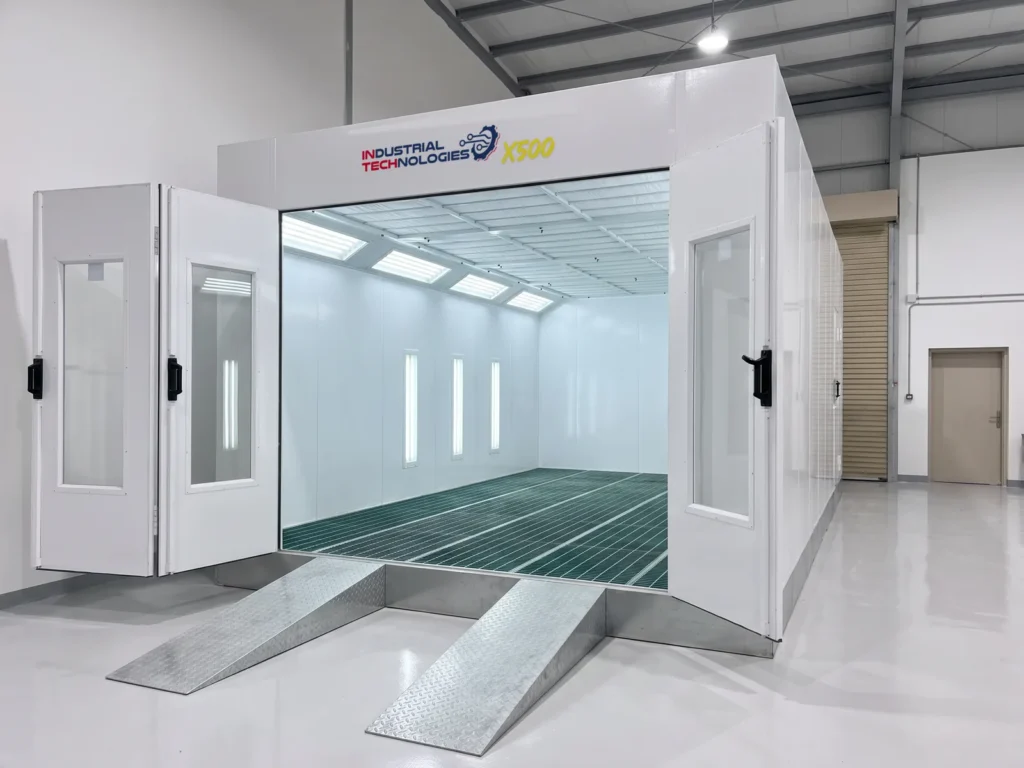

- three-leaf 3000×2600 mm main door
- 45° LED lighting: 32 ceiling and 12 side fittings at 20 W
- argon-arc welded SUS304 heat exchanger and Riello G20 burner, 200,000 kcal/h
Engineering basis
What makes the difference in daily operation
Two turbine fans of equal capacity
A supply fan and an exhaust fan of 7.5 kW each move 25,000 m³/h in each direction, at an air speed of 0.28 m/s. Balanced supply and exhaust keep a steady flow from ceiling to grille floor, so overspray leaves the chamber instead of circling over the part.
A pneumatic damper and a filter gauge
The pneumatic damper moves the booth between paint and bake modes, and the pressure gauge in the control box shows when the filters start to load, so a filter is changed when it needs changing rather than on a calendar.
Specifications
INTECH X500 specification table
| Specification | Value |
|---|---|
| Internal dimensions L×W×H (mm) | 6900×4000×2650 |
| External dimensions L×W×H (mm) | 7000×5300×3400 |
| Main door (mm) | 3000×2600 |
| Main door type | three-leaf sheet metal |
| Work door (mm) | 800×2000 with observation glass and pressure relief above 10 Pa |
| Supply air (m³/h) | 25,000 |
| Exhaust air (m³/h) | 25,000 |
| Supply fan | turbine fan, 7.5 kW |
| Exhaust fan | turbine fan, 7.5 kW |
| Fan pressure (Pa) | 650 |
| Air speed (m/s) | 0.28 |
| Air changes per hour | 280 |
| Damper | pneumatic, switching paint and bake modes |
| Pressure gauge | round gauge in the control box showing filter loading |
| Filtration | non-woven pre-filter (above 15 μm) · high-efficiency ceiling filter (over 98% of particles above 5 μm) · EU2 fibreglass floor filter |
| Lighting | 45° LED fittings: 32 ceiling and 12 side, 20 W each, ≥800 lux |
| Heater / burner | Riello G20 diesel burner |
| Heat output (kcal/h) | 200,000 |
| Heat-up time | 5–7 minutes from 20 °C to 60 °C |
| Heat exchanger | SUS304, argon-arc welded |
| Chimney (m) | 5 |
| Wall type | 50 mm flame-resistant EPS panels, 0.426 mm steel skin |
| Base | 300 mm high, 40×80 galvanised tube · full grille (5 rows) |
| Control system | paint · paint with rising temperature · bake · temperature and time setting · lighting · alarm |
| Protection | emergency stop · over-temperature, overload and phase-loss protection · Schneider relays and contactors |
| Total power (kW) | 17 |
| Voltage | 380 V 3-phase 60 Hz |
| Entry ramps (mm) | 550×2000, embossed plate |
How it differs
How the INTECH X500 differs from its nearest model
Against the INTECH X300 and X360: 25,000+25,000 m³/h and 17 kW here, against 20,000+18,000 m³/h and 11 kW there, plus a pneumatic damper instead of an electric one, a filter pressure gauge and a full-grille base.
The INTECH X700 is the same booth with a four-leaf main door carrying large glass panels instead of the sheet metal door.
The 6900×4000×2650 mm chamber, the burner, the heat output and the ceiling filtration are the same across all INTECH models.
Industries
Sectors this model serves
These are the industries the INTECH X500 serves specifically, not the family as a whole.
FAQ
Common questions about the INTECH X500
What is the airflow of the INTECH X500 paint booth?
25,000 m³/h of supply air and 25,000 m³/h of exhaust air, from two 7.5 kW turbine fans at 650 Pa.
What does the pneumatic damper on the INTECH X500 do?
It switches the air path between paint and bake modes. The damper is pneumatic on the INTECH X500, X700, X900 and X960, and electric on the INTECH X300 and X360.
What electrical supply does the INTECH X500 need?
17 kW on a 380 V, 3-phase, 60 Hz supply.
How does the INTECH X500 differ from the INTECH X700?
Only in the main door: three-leaf sheet metal here, four-leaf with large glass panels on the INTECH X700. Air, power and control are identical.
How is the INTECH X500 heated?
By a Riello G20 diesel burner rated at 200,000 kcal/h through an argon-arc welded SUS304 exchanger, from 20 °C to 60 °C in 5 to 7 minutes.
