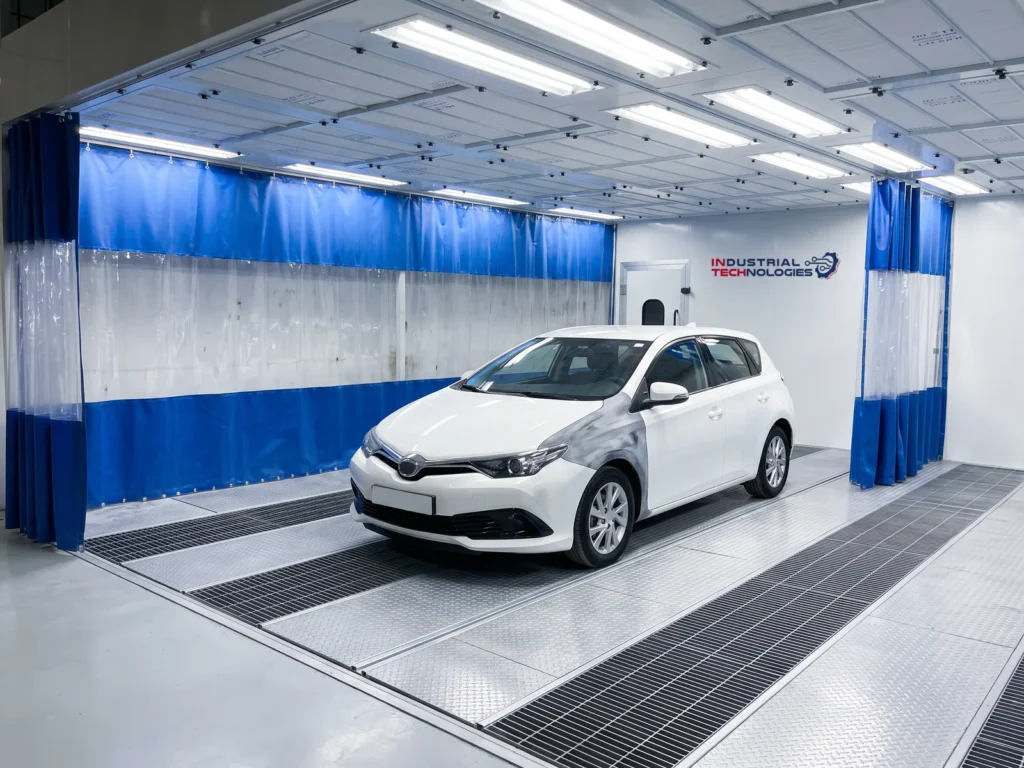

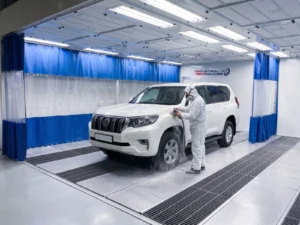

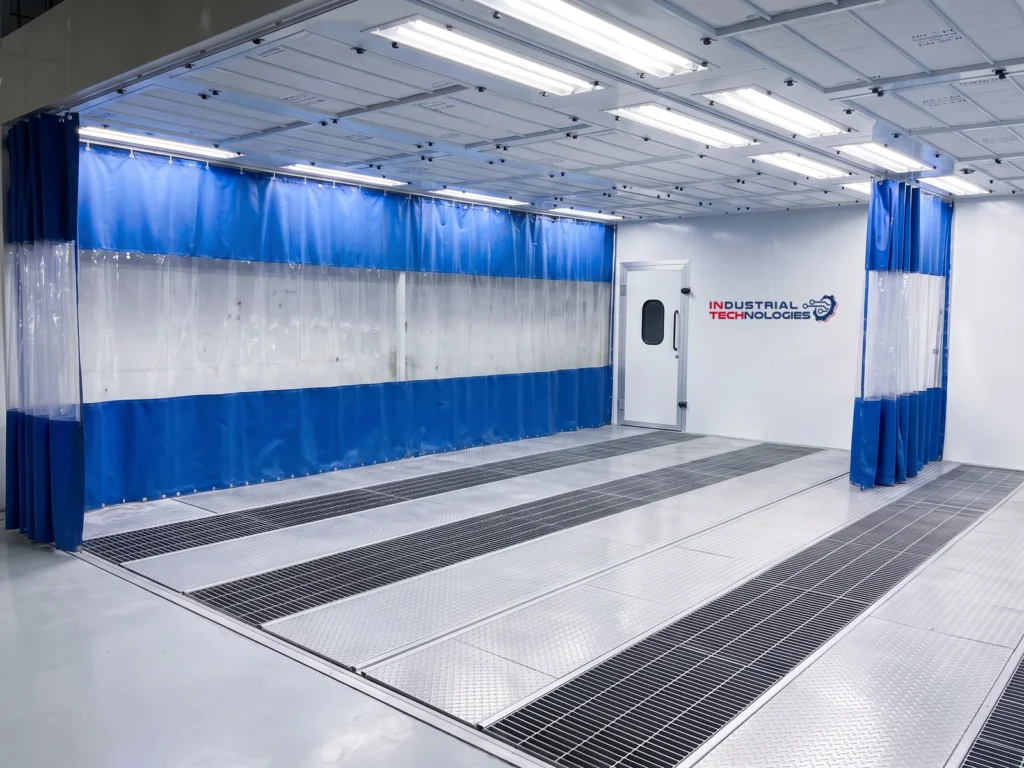

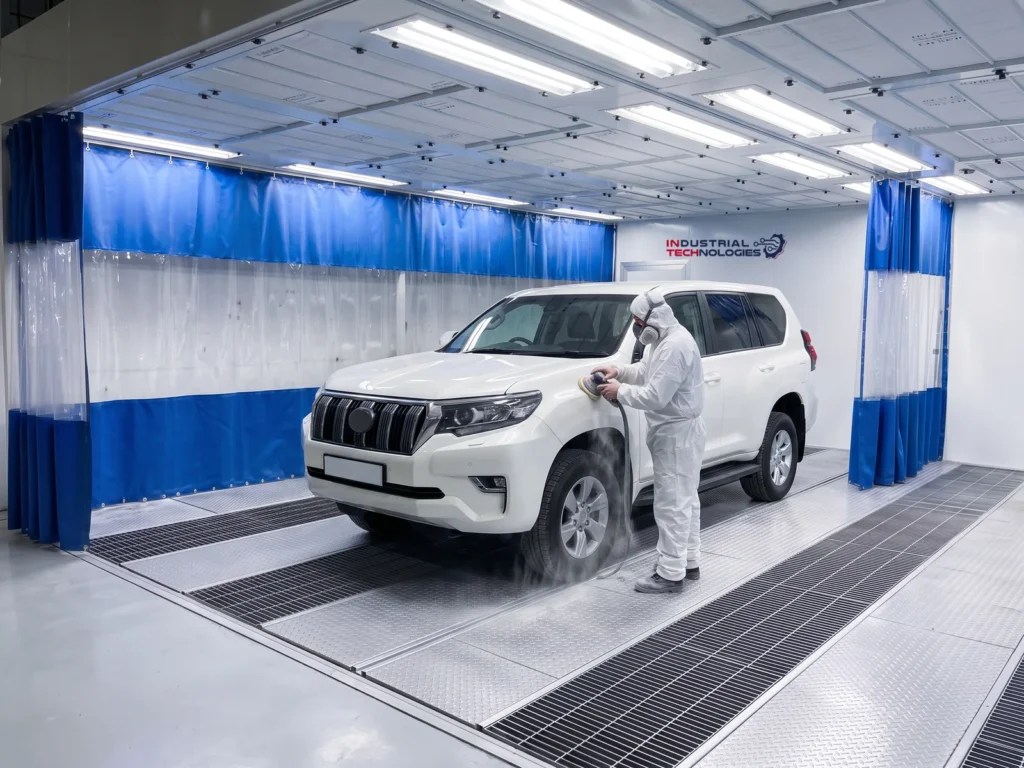

INTECH PURE 360 prep station with down draft and metal base
The same room as the PURE 200 — 6900×4000×2650 mm, PVC curtains and a full ceiling plenum — but here air falls vertically from the ceiling and is drawn out through a full metal base, by a 4 kW turbine fan at 15,000 m³/h. Aimed at the workshop that wants sanding dust carried downward, away from the part, rather than sideways.
Overview
This model at a glance
Key features
What the standard supply includes
- down draft from ceiling to floor
- full metal base: 2 rows of grille and 3 rows of embossed plate
- 4 kW turbine exhaust fan, 15,000 m³/h at 800 Pa
- front and side PVC curtains on an aluminium track
- 50 mm flame-resistant EPS rear wall
- full ceiling plenum with a pre-filter and a high-efficiency ceiling filter
- fibreglass exhaust filter
- 24 ceiling LED fittings at 16 W, ≥800 lux
Engineering basis
What makes the difference in daily operation
Down draft instead of rear draft
Clean air falls vertically from the ceiling plenum over the part and leaves through the grille in the base, carrying sanding dust and primer overspray downward instead of across the part towards the rear wall.
A metal base with two grille rows

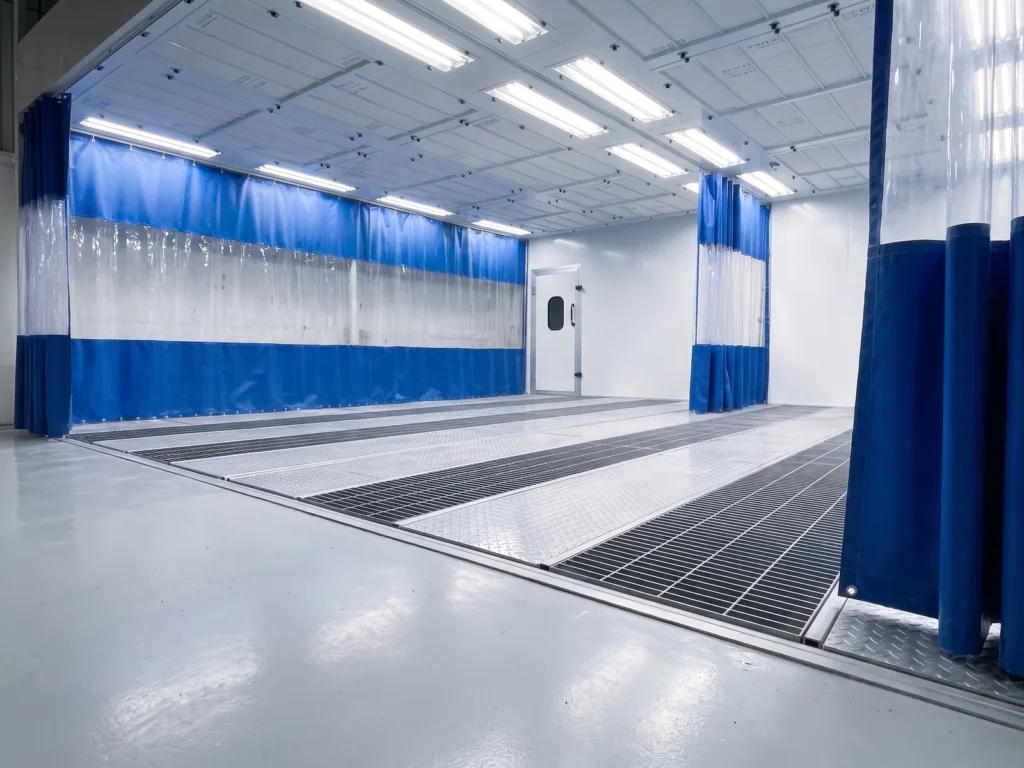

The full metal base carries the vehicle and spreads extraction across two rows of grille, while the rest of the base is embossed plate that a technician can walk on safely.
Specifications
INTECH PURE 360 specification table
| Specification | Value |
|---|---|
| Type | prep room with front and side PVC curtains and a rear wall |
| Internal dimensions L×W×H (mm) | 6900×4000×2650 |
| External dimensions L×W×H (mm) | 8150×4000×3430 |
| Draft direction | down draft through the base |
| Fans | turbine exhaust fan, 4 kW |
| Air capacity (m³/h) | 15,000 |
| Fan pressure (Pa) | 800 |
| Fan speed (rpm) | 900 |
| Base | full metal base: 2 rows of grille and 3 rows of embossed plate |
| Filtration | pre-filter · high-efficiency ceiling filter in a full ceiling plenum · fibreglass exhaust filter |
| Curtains | front and side PVC curtains on an aluminium track |
| Rear wall | 50 mm flame-resistant EPS panel, 0.426 mm coloured steel on both faces |
| Roof | galvanised steel |
| Lighting | 24 ceiling LED fittings at 16 W, ≥800 lux |
| Control box | lighting · spraying · time setting · fault indicator · emergency stop · alarm |
| Total power (kW) | 5.5 |
| Voltage | 380 V 3-phase 60 Hz |
How it differs
How the INTECH PURE 360 differs from its nearest model
The PURE 200 is the same room with a rear side draft, standing on the floor with no metal base.
The PURE 500 adds a 4 kW supply fan to the exhaust fan and a full five-row grille base, on 9.5 kW.
The 6900×4000×2650 mm room, the curtains, the ceiling plenum and the 15,000 m³/h fan rating are the same on the PURE 200, 360 and 500.
Industries
Sectors this model serves
These are the industries the INTECH PURE 360 serves specifically, not the family as a whole.
FAQ
Common questions about the INTECH PURE 360
What does down draft mean on the PURE 360?
Air falls vertically from the ceiling plenum over the part and is drawn out through the grille in the base, so dust moves downward rather than towards the rear wall.
Does the PURE 360 need a base?
Yes. It comes with a full metal base of two grille rows and three rows of embossed plate, as part of the supply.
What is the air capacity of the PURE 360 prep station?
15,000 m³/h from a 4 kW turbine exhaust fan at 800 Pa, with a total power of 5.5 kW.
How does the PURE 360 differ from the PURE 500?
The PURE 500 adds a 4 kW supply fan and a full-grille base, taking its power to 9.5 kW.
What are the room dimensions?
6900×4000×2650 mm inside and 8150×4000×3430 mm outside.
