INTECH PURE 200 prep station: curtains, rear draft, no metal base

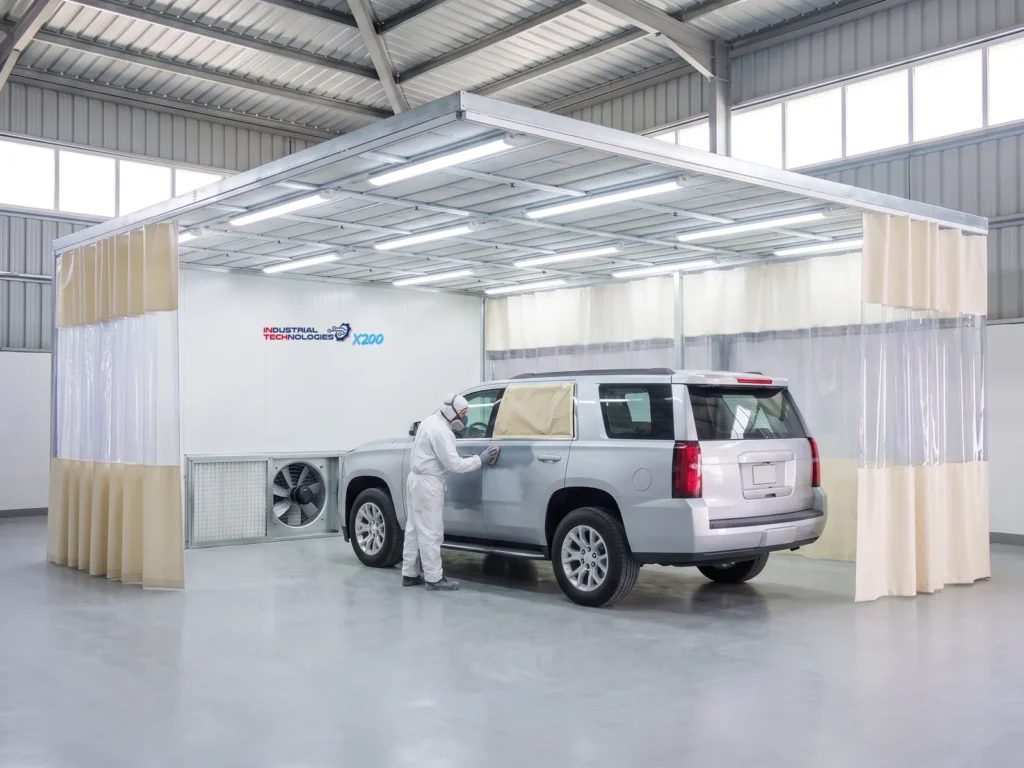

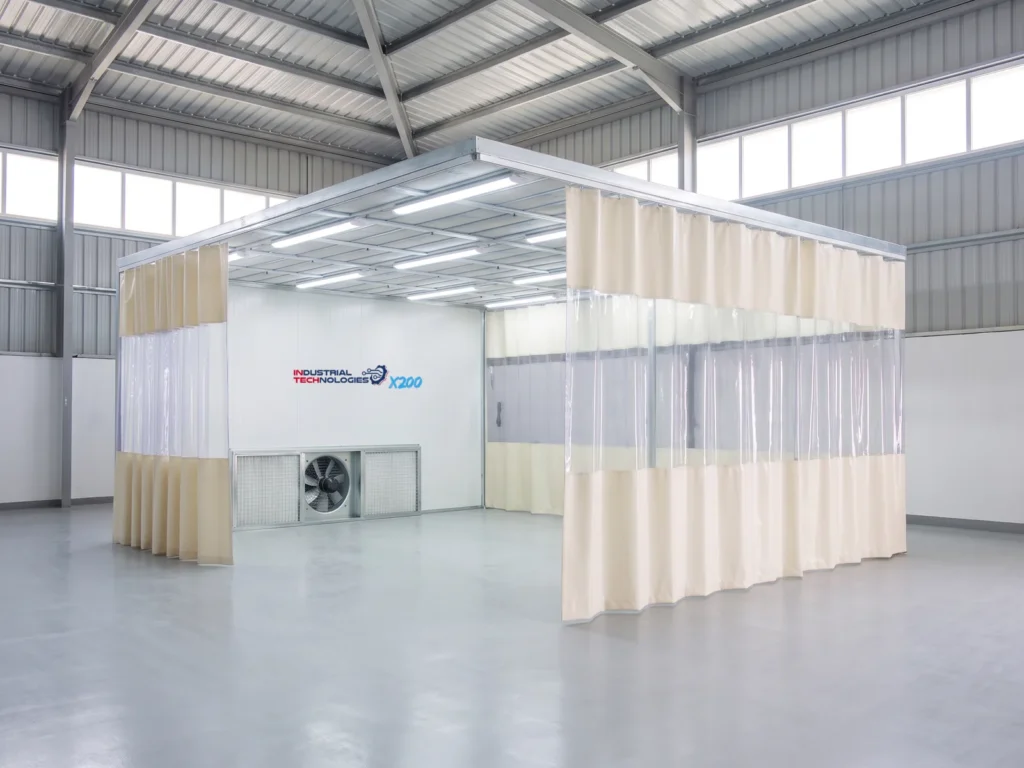

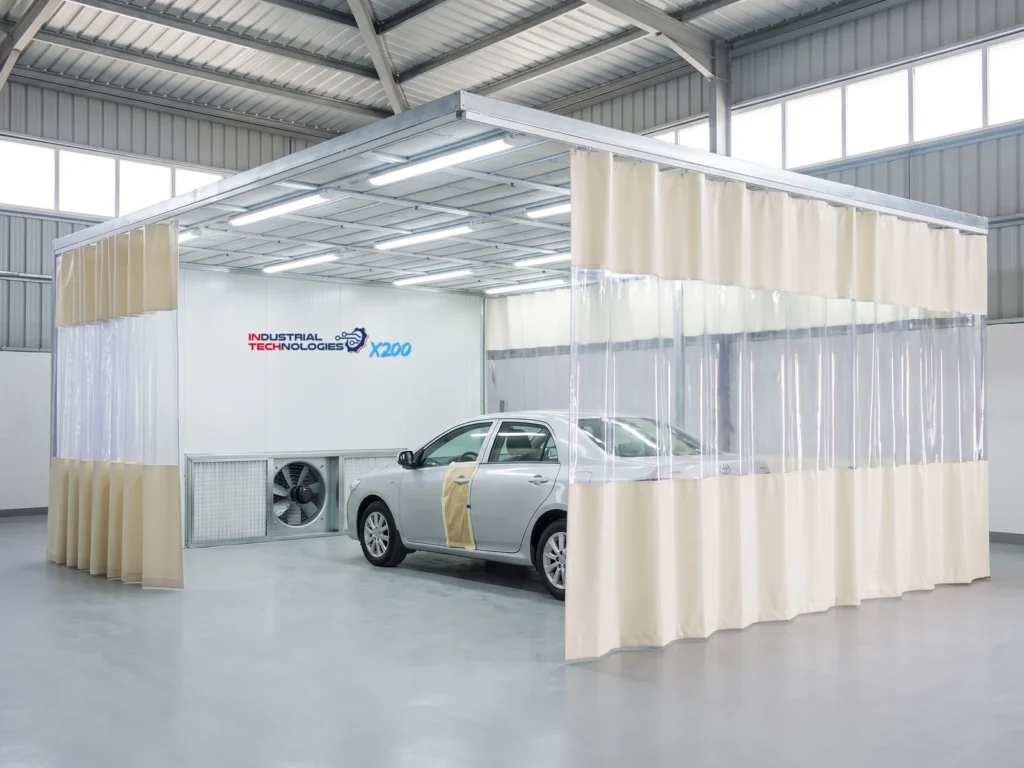

A 6900×4000×2650 mm prep room with front and side PVC curtains and an EPS rear wall, drawing air to the back through a 4 kW turbine fan at 15,000 m³/h under a full ceiling filter plenum. It stands directly on the workshop floor with no metal base, making it the simplest room in the family to install.
Overview
This model at a glance
Key features
What the standard supply includes
- front and side PVC curtains on an aluminium track
- 50 mm flame-resistant EPS rear wall
- rear side draft with the fan unit on the rear wall
- 4 kW turbine exhaust fan, 15,000 m³/h at 800 Pa
- full ceiling plenum with a pre-filter and a high-efficiency ceiling filter
- fibreglass exhaust filter
- 24 ceiling LED fittings at 16 W, ≥800 lux
- stands on the workshop floor with no metal base
Engineering basis
What makes the difference in daily operation
Rear extraction with no floor works

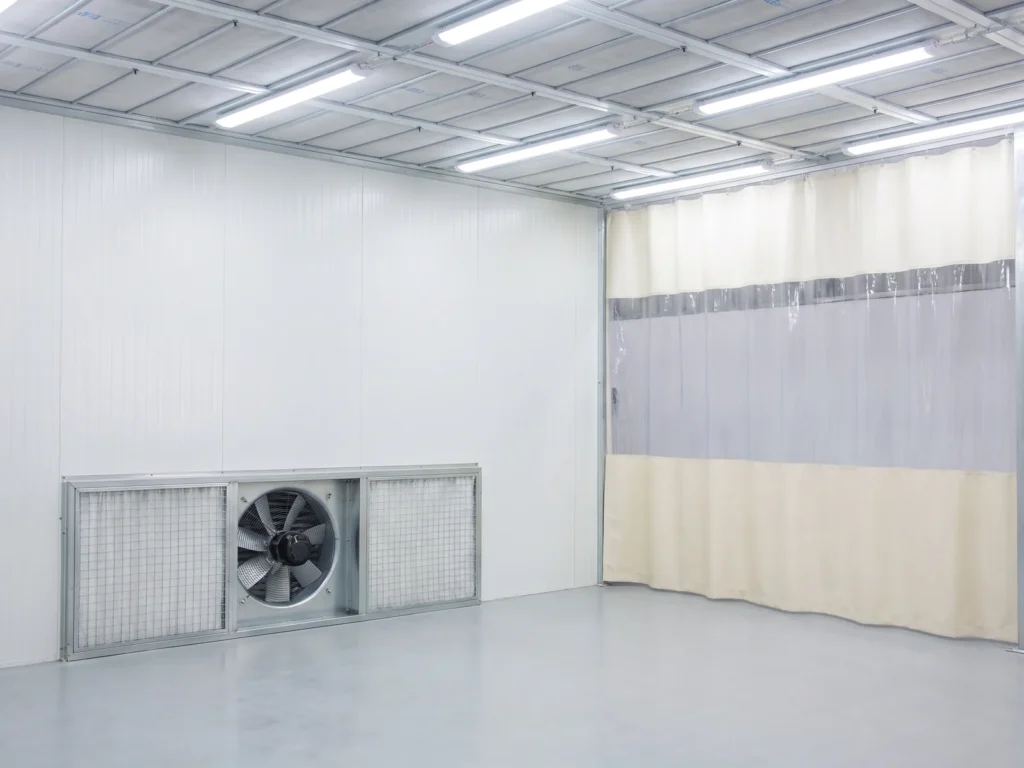

The fan unit on the rear wall draws air horizontally from the ceiling across the part to the back, so the room needs no grille base and no work under the floor; it goes onto the workshop slab as it is.
Clean air from the ceiling
Air enters through a pre-filter and a high-efficiency ceiling filter across the whole roof, comes down clean over the part, and leaves through a fibreglass filter that holds sanding dust and primer overspray.
Specifications
INTECH PURE 200 specification table
| Specification | Value |
|---|---|
| Type | prep room with front and side PVC curtains and a rear wall |
| Internal dimensions L×W×H (mm) | 6900×4000×2650 |
| External dimensions L×W×H (mm) | 8150×4000×3430 |
| Draft direction | rear side draft, fan unit on the rear wall |
| Fans | turbine exhaust fan, 4 kW |
| Air capacity (m³/h) | 15,000 |
| Fan pressure (Pa) | 800 |
| Fan speed (rpm) | 900 |
| Base | no metal base — stands on the workshop floor |
| Filtration | pre-filter · high-efficiency ceiling filter in a full ceiling plenum · fibreglass exhaust filter |
| Curtains | front and side PVC curtains on an aluminium track |
| Rear wall | 50 mm flame-resistant EPS panel, 0.426 mm coloured steel on both faces |
| Roof | galvanised steel |
| Lighting | 24 ceiling LED fittings at 16 W, ≥800 lux |
| Control box | lighting · spraying · time setting · fault indicator · emergency stop · alarm |
| Total power (kW) | 5.5 |
| Voltage | 380 V 3-phase 60 Hz |
How it differs
How the INTECH PURE 200 differs from its nearest model
The PURE 360 is the same room with down draft and a full metal base instead of rear extraction on the floor.
The PURE 120 is an open station with no curtains or walls, a 5.5 kW centrifugal fan and fibreglass-plus-activated-carbon filtration.
The 6900×4000×2650 mm room, the curtains, the ceiling plenum and the 15,000 m³/h fan rating are the same on the PURE 200, 360 and 500.
Industries
Sectors this model serves
These are the industries the INTECH PURE 200 serves specifically, not the family as a whole.
FAQ
Common questions about the INTECH PURE 200
Does the PURE 200 need a base or a floor pit?
No. Extraction is a rear side draft through a fan unit on the rear wall, so the room stands directly on the workshop floor with no metal base.
What is the air capacity of the PURE 200 prep station?
15,000 m³/h from a 4 kW turbine exhaust fan at 800 Pa, with a total power of 5.5 kW.
How is air filtered on the PURE 200?
A pre-filter and a high-efficiency ceiling filter in a full ceiling plenum on the way in, and a fibreglass filter on the way out.
How does the PURE 200 differ from the PURE 360?
In draft direction and base: rear extraction on the floor here, down draft on a full metal base on the PURE 360. Dimensions, fan and power are identical.
What are the room dimensions?
6900×4000×2650 mm inside and 8150×4000×3430 mm outside.
