Chassis Pullers & Body Repair Equipment · INTECH CR 900

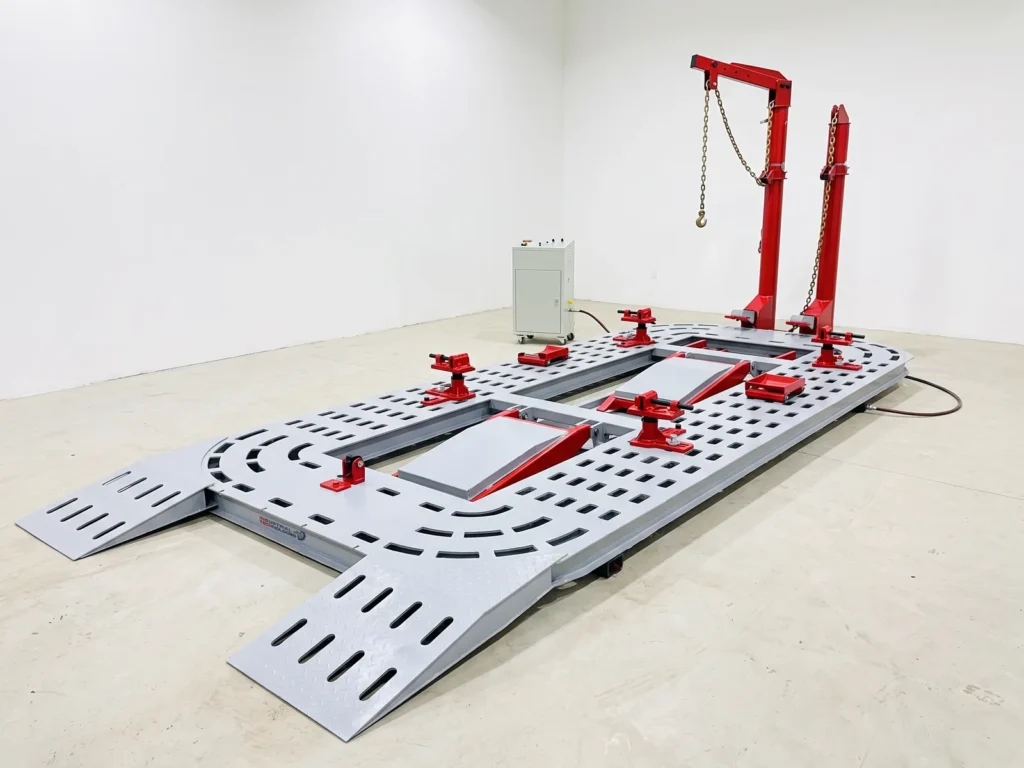

INTECH CR 900 wireless remote chassis puller, medium to heavy duty
The top model of the family: a 5600 mm bench, 2280 mm wide, that rises by tilting or vertically up to 1080 mm, with every lifting and pulling function run from a hand-held wireless remote and no foot pump, at 10 t pulling force and 3300 kg weight. Built for medium and heavy duty work.
Overview
This model at a glance
Key features
What the standard supply includes
- hand-held wireless remote for every lifting and pulling function
- no foot pump
- 5600×2280 mm bench
- tilting lift and vertical lift up to 1080 mm
- 10 t pulling force and a 360° pulling range
- 4000 kg lifting capacity
- customisable drive-on ramps
- for medium and heavy duty work
Engineering basis
What makes the difference in daily operation

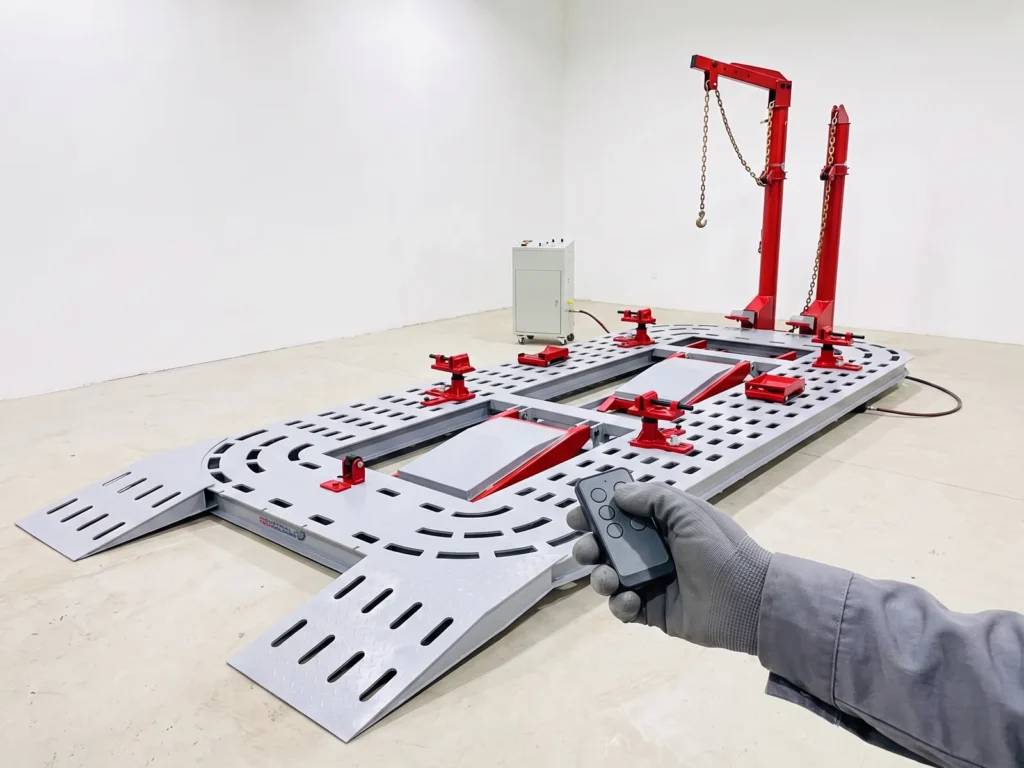

Everything from the remote

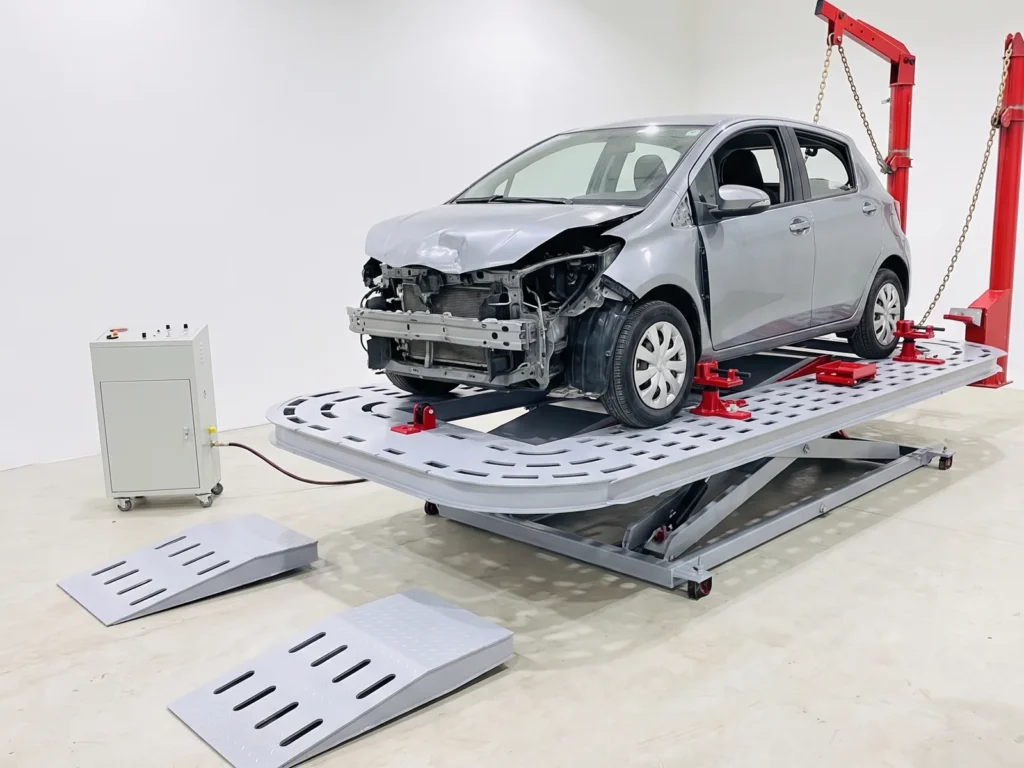

Lifting, tilting and pulling are all run from a wireless remote in the technician’s hand, so the technician moves around the vehicle and watches the pull point from close by instead of standing at a foot pump or a fixed panel.
Vertical lift as well as tilt
The bench tilts for drive-on and rises vertically up to 1080 mm to bring the underbody to a comfortable working height, on a 2280 mm width wider than the rest of the family.
Specifications
INTECH CR 900 specification table
| Specification | Value |
|---|---|
| Bench dimensions L×W (mm) | 5600×2280 |
| Bench height (mm) | 0–330–1080 |
| Pulling force | 10 t |
| Pulling range | 360° |
| Air pressure (MPa) | 0.6–0.8 |
| Lifting capacity (kg) | 4000 |
| Weight (kg) | 3300 |
| Control | hand-held wireless remote for every lifting and pulling function, no foot pump |
| Lifting | tilting and vertical lifting |
| Ramps | customisable |
| Duty | medium and heavy duty |
| Voltage | 220/380 V |
How it differs
How the INTECH CR 900 differs from its nearest model
The CR 360, CR 500 and CR 700 sit on a 2100 mm wide, 520 mm high bench whose lift platform tilts for drive-on.
The CR 900 alone in the family is run entirely from a wireless remote and lifts the bench vertically up to 1080 mm as well as tilting it.
The 10 t pulling force, 4000 kg lifting capacity and 360° pulling range are the same across all models in the family.
Browse the full Chassis Pullers & Body Repair Equipment family
Industries
Sectors this model serves
These are the industries the INTECH CR 900 serves specifically, not the family as a whole.
FAQ
Common questions about the INTECH CR 900
How is the INTECH CR 900 operated?
With a hand-held wireless remote that runs every lifting and pulling function; the unit has no foot pump.
How high does the CR 900 bench rise?
Up to 1080 mm, by tilting or by vertical lift.
What are the CR 900 bench dimensions and weight?
The bench is 5600 mm long and 2280 mm wide, and the unit weighs 3300 kg.
What is the pulling force of the CR 900?
10 t, with a 360° pulling range around the vehicle, on compressed air at 0.6–0.8 MPa.
Are the drive-on ramps a fixed size?
No, the drive-on ramps on the CR 900 are customisable.
Request a quote for the INTECH CR 900 Chassis Puller
State your sector and workshop size in the form, and you receive a quote built on the configuration that fits your site rather than a generic one.
