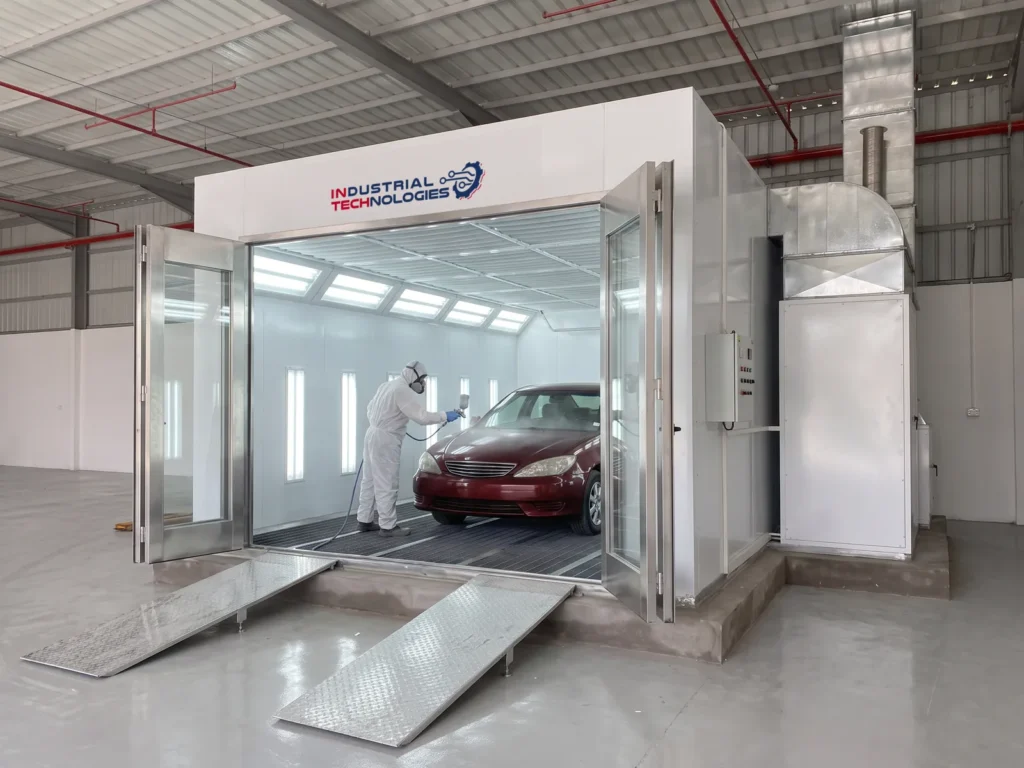

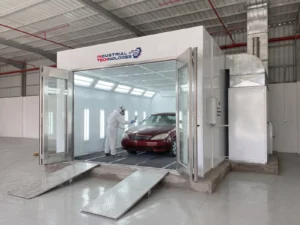

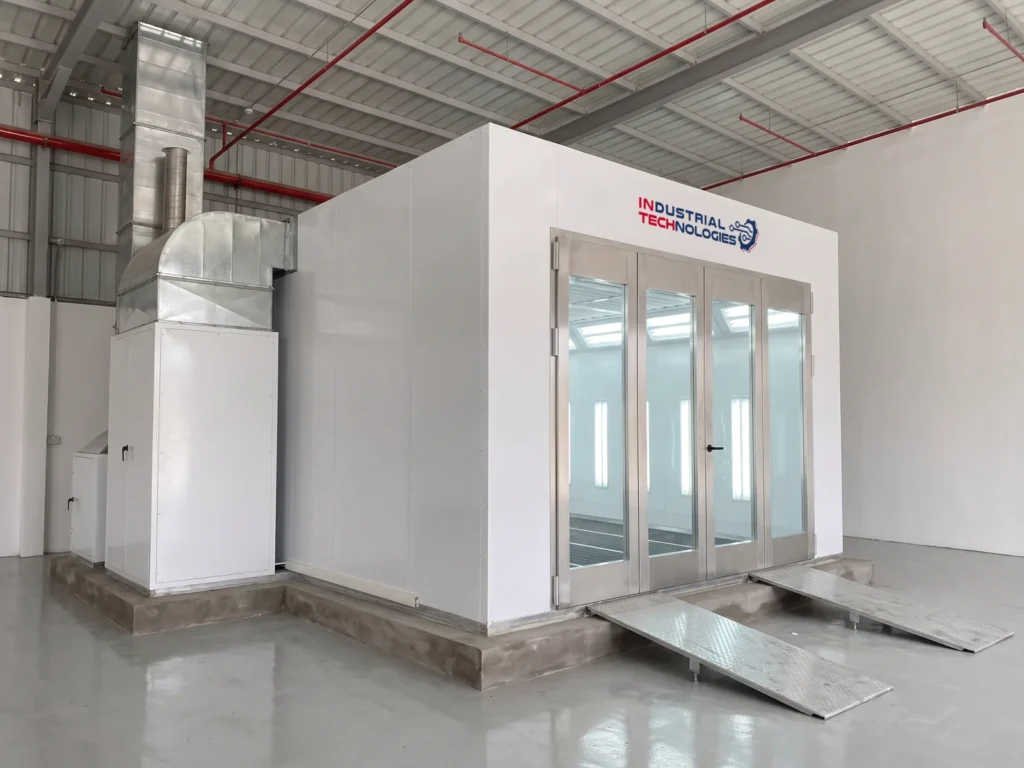

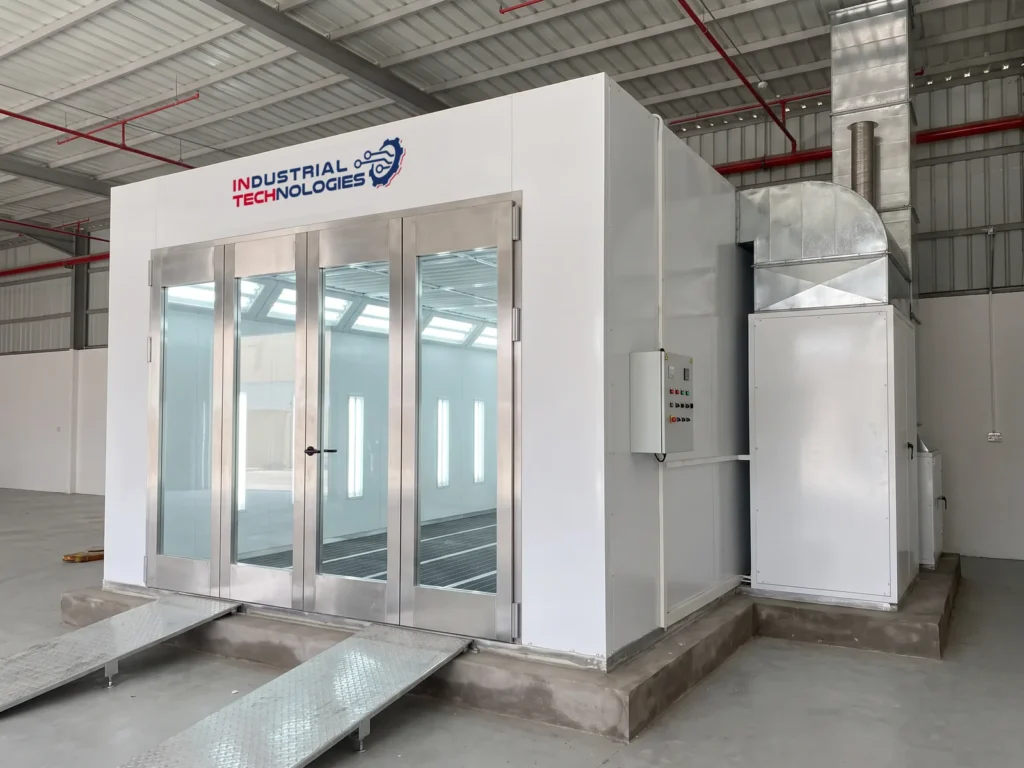

INTECH X700 paint booth with a four-leaf glass door
The full INTECH X500 figures — 25,000+25,000 m³/h, two 7.5 kW turbine fans and a pneumatic damper — with a four-leaf main door of large glass panels across the whole 3000×2600 mm opening. Aimed at the workshop that wants the chamber visible from outside, such as a dealer service hall.
Overview
This model at a glance
Key features
What the standard supply includes
- four-leaf 3000×2600 mm main door with large glass panels
- 7.5 kW turbine supply fan and 7.5 kW turbine exhaust fan at 650 Pa
- pneumatic damper switching between paint and bake
- round pressure gauge in the control box showing filter loading
- full-grille base of five rows, 300 mm high
- 50 mm flame-resistant EPS walls on a 0.426 mm steel skin
- 45° LED lighting: 32 ceiling and 12 side fittings at 20 W
- argon-arc welded SUS304 heat exchanger and Riello G20 burner, 200,000 kcal/h
Engineering basis
What makes the difference in daily operation

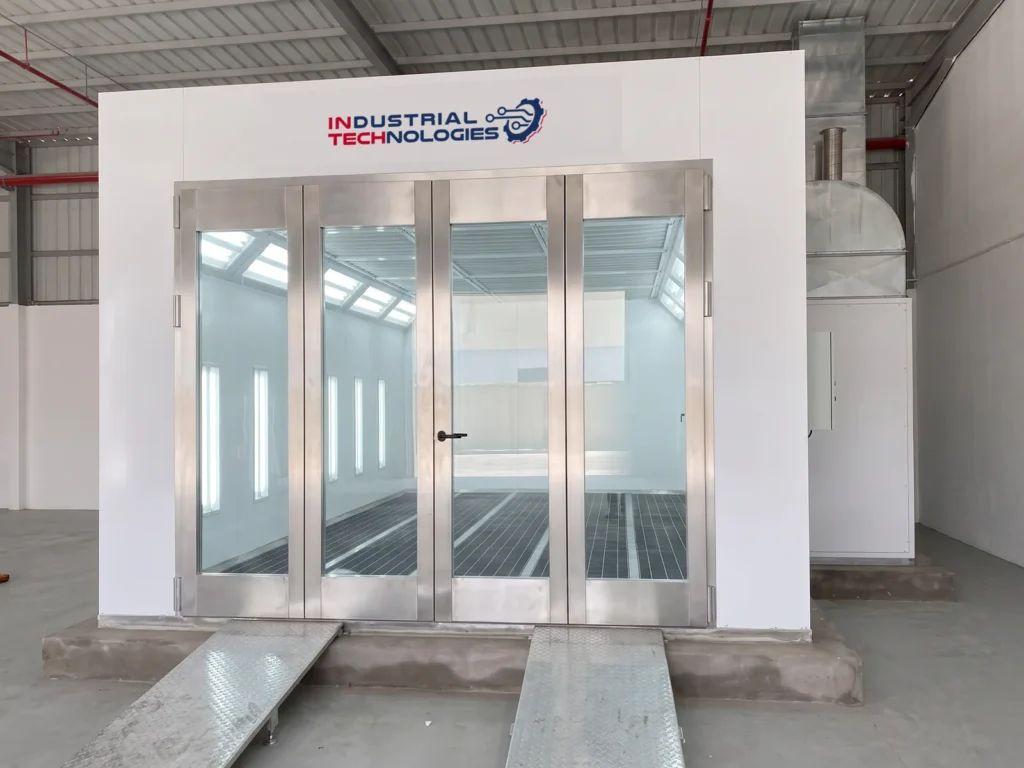

A glass door across the full opening
Four leaves of large glass cover the whole 3000×2600 mm opening, so a supervisor or a customer can follow the work inside without opening the door and breaking chamber pressure during spraying.
The same higher-class extraction
Behind the glass door sit the INTECH X500 turbine fans, 7.5 kW each and 25,000 m³/h in each direction, with the pneumatic damper, the pressure gauge and the full-grille base.
Specifications
INTECH X700 specification table
| Specification | Value |
|---|---|
| Internal dimensions L×W×H (mm) | 6900×4000×2650 |
| External dimensions L×W×H (mm) | 7000×5300×3400 |
| Main door (mm) | 3000×2600 |
| Main door type | four-leaf with large glass panels |
| Work door (mm) | 800×2000 with observation glass and pressure relief above 10 Pa |
| Supply air (m³/h) | 25,000 |
| Exhaust air (m³/h) | 25,000 |
| Supply fan | turbine fan, 7.5 kW |
| Exhaust fan | turbine fan, 7.5 kW |
| Fan pressure (Pa) | 650 |
| Air speed (m/s) | 0.28 |
| Air changes per hour | 280 |
| Damper | pneumatic, switching paint and bake modes |
| Pressure gauge | round gauge in the control box showing filter loading |
| Filtration | non-woven pre-filter (above 15 μm) · high-efficiency ceiling filter (over 98% of particles above 5 μm) · EU2 fibreglass floor filter |
| Lighting | 45° LED fittings: 32 ceiling and 12 side, 20 W each, ≥800 lux |
| Heater / burner | Riello G20 diesel burner |
| Heat output (kcal/h) | 200,000 |
| Heat-up time | 5–7 minutes from 20 °C to 60 °C |
| Heat exchanger | SUS304, argon-arc welded |
| Chimney (m) | 5 |
| Wall type | 50 mm flame-resistant EPS panels, 0.426 mm steel skin |
| Base | 300 mm high, 40×80 galvanised tube · full grille (5 rows) |
| Control system | paint · paint with rising temperature · bake · temperature and time setting · lighting · alarm |
| Protection | emergency stop · over-temperature, overload and phase-loss protection · Schneider relays and contactors |
| Total power (kW) | 17 |
| Voltage | 380 V 3-phase 60 Hz |
| Entry ramps (mm) | 550×2000, embossed plate |
How it differs
How the INTECH X700 differs from its nearest model
The INTECH X500 is the same booth with a three-leaf sheet metal main door instead of the glass door.
The INTECH X900 adds PLC touch-screen control running the cycle and star-delta motor starting to this model.
The 6900×4000×2650 mm chamber, the burner, the heat output and the ceiling filtration are the same across all INTECH models.
Industries
Sectors this model serves
These are the industries the INTECH X700 serves specifically, not the family as a whole.
FAQ
Common questions about the INTECH X700
How does the INTECH X700 differ from the INTECH X500?
Only in the main door: four-leaf with large glass panels here, three-leaf sheet metal on the INTECH X500. Air, power and control are identical.
What size is the main door on the INTECH X700?
3000×2600 mm in four leaves of large glass, plus an 800×2000 mm work door with an observation window.
What is the air capacity of the INTECH X700 paint booth?
25,000 m³/h supply and 25,000 m³/h exhaust, from two 7.5 kW turbine fans.
Does the INTECH X700 have PLC control?
No. Its control panel is the standard one with paint, bake, temperature and time settings. PLC touch-screen control starts with the INTECH X900.
What electrical supply does the INTECH X700 need?
17 kW on a 380 V, 3-phase, 60 Hz supply.
