Vehicle Lifts & Lifting Equipment · SHL-2-245L
Clear-Floor Two-Post Lift 3900 mm with Wire Sync and Ratchet Locks
A clear-floor two-post lift rated at 4500 kg with a 1990 mm lift height, using steel-wire synchronisation and ratchet locks. Built for bays that lift more than ten vehicles a day.
Overview
This model in three numbers
Key Features
What the standard supply includes
- Twin-cylinder chain drive
- Steel-wire synchronisation between columns
- Polymer slider on the column
- Toothed ratchet arm locks
- Overhead gate frame, nothing across the floor
- Roof protection
- 50 s rise, 30 s descend
Engineering basis
What makes the difference day to day

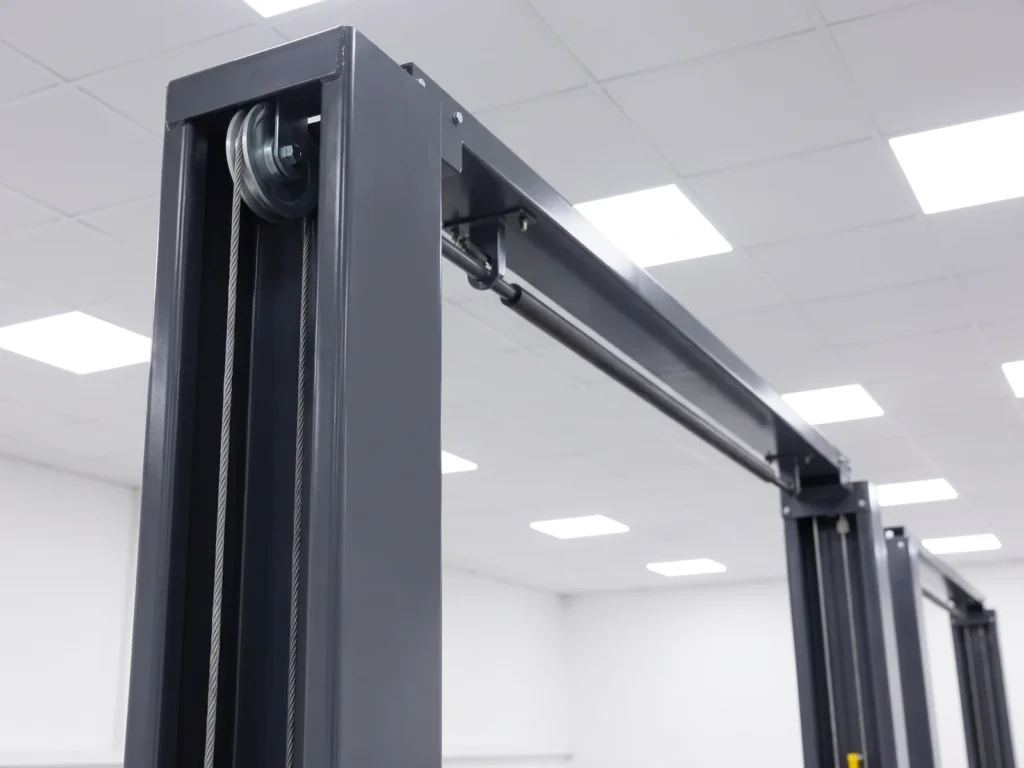

Steel-wire synchronisation
A steel wire mechanically ties the two columns together, holding both sides at the same height even under an off-centre load — protecting the vehicle and giving the technician a stable platform.
Ratchet arm locks
The arms lock automatically on a built-in toothed ratchet, and one handle on one side releases the locks on both columns.
Specifications
SHL-2-245L specification table
| Specification | Value |
|---|---|
| Lifting capacity (kg) | 4500 |
| Lift height (mm) | 1990 |
| Minimum height (mm) | 95 |
| Overall height (mm) | 3900 |
| Inner width between columns (mm) | 2860 |
| Overall width (mm) | 3440 |
| Motor power (kW) | 2.2 |
| Voltage | 380 V / 220 V |
| Rise / descend time (s) | 50 / 30 |
| Drive | Twin-cylinder chain |
| Synchronisation | Steel wire |
| Arm locking | Automatic toothed ratchet |
| Structure type | Overhead gate — clear floor |
How it differs
How the SHL-2-245L differs from its closest model
This model shares its capacity (4500 kg), lift height (1990 mm), motor power (2.2 kW) and cycle times with the 3700 mm version.
The difference is that this model uses a twin-cylinder chain drive with steel-wire synchronisation, while the 3700 mm model is the compact version with a direct cylinder drive and no chain. Both have toothed ratchet arm locks.
Industries
Sectors this model serves
These are the industries the SHL-2-245L serves specifically, not the family as a whole.
FAQ
Frequently asked about the SHL-2-245L
What is the rated lifting capacity?
4500 kg with a 1990 mm lift height.
How is side-to-side level maintained?
A steel wire ties the two columns together mechanically, on a twin-cylinder chain drive.
What power supply does it need?
A 2.2 kW motor on either 380 V or 220 V, depending on configuration.
How does it differ from the 3700 mm model?
Capacity, height, power and cycle times are identical; this model uses a twin-cylinder chain drive with wire synchronisation, while the 3700 mm model drives directly without a chain. Both have ratchet arm locks.
Request a quote for the Clear-Floor Two-Post Lift 3900 mm for Workshops
Tell us your sector and bay size in the form, and the quote comes back built around the configuration your site needs, not a generic one.
