Prep Stations & Mixing Rooms · INTECH PURE 500

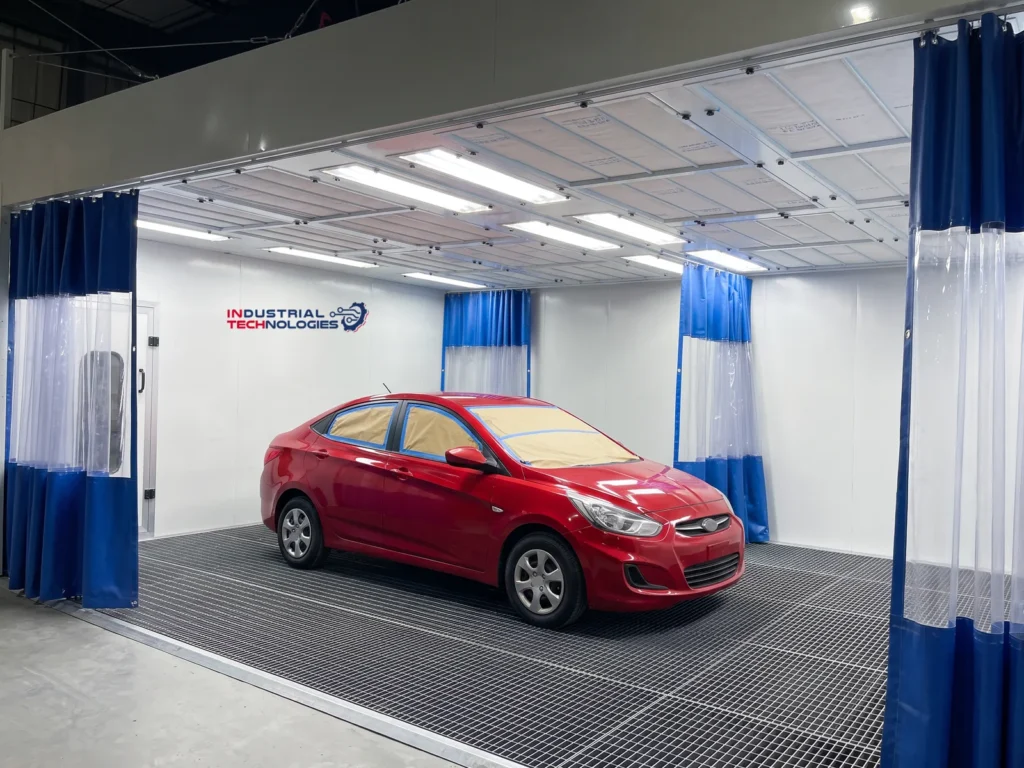

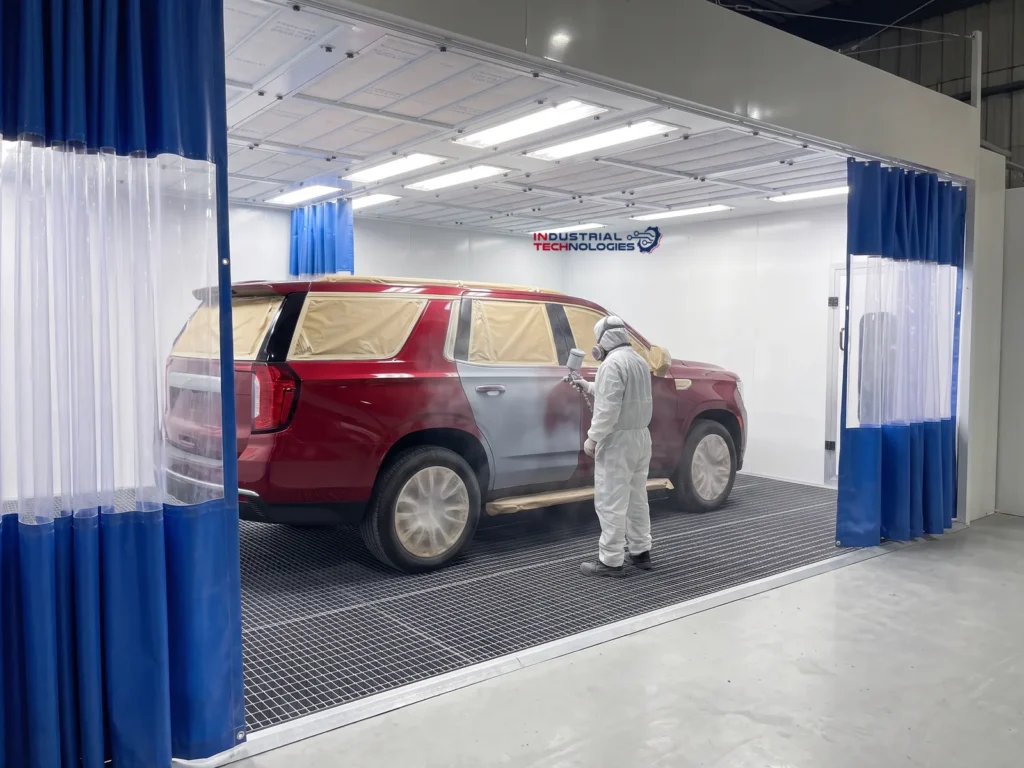

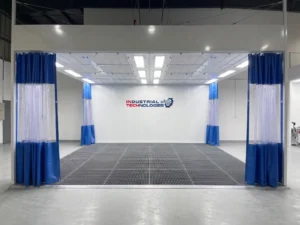

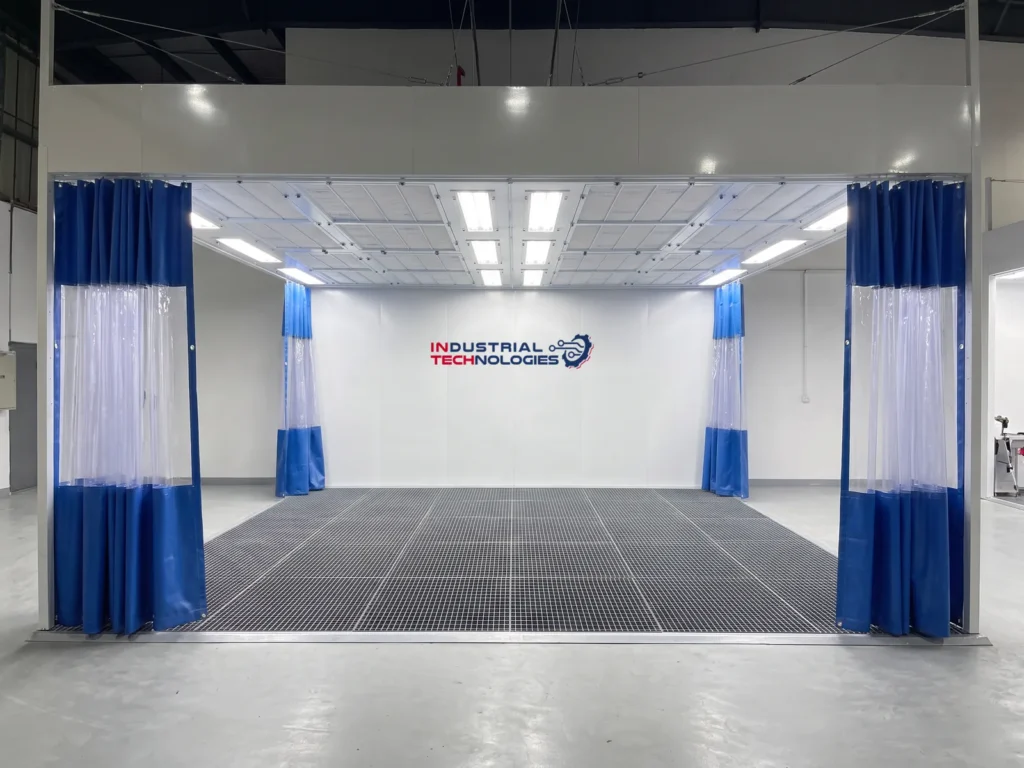

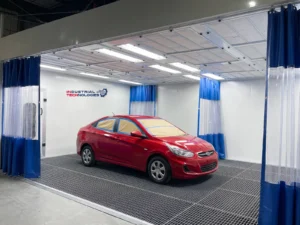

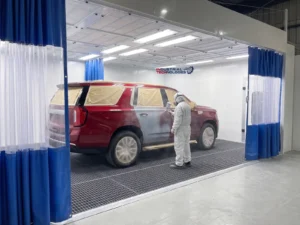

INTECH PURE 500 prep station with supply and exhaust fans
The top prep room in the family: a 4 kW supply fan pushes air into the ceiling plenum and a 4 kW exhaust fan draws it out through a full-grille base, each at 15,000 m³/h and 800 Pa, inside a 6900×4000×2650 mm room with PVC curtains. Aimed at the workshop that wants managed supply air rather than air drawn in from the workshop alone.
Overview
This model at a glance
Key features
What the standard supply includes
- 4 kW supply fan and 4 kW exhaust fan, 15,000 m³/h each at 800 Pa
- down draft from ceiling to floor
- full five-row metal grille base
- front and side PVC curtains on an aluminium track
- 50 mm flame-resistant EPS rear wall

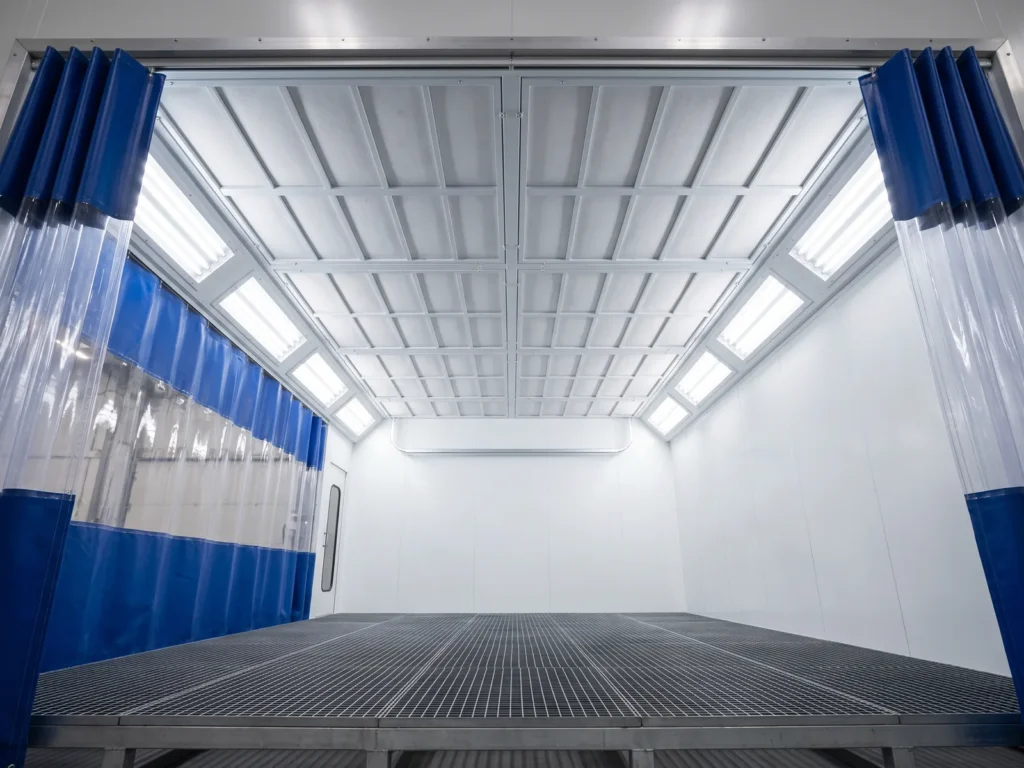

- full ceiling plenum with a pre-filter and a high-efficiency ceiling filter
- fibreglass exhaust filter
- 24 ceiling LED fittings at 16 W, ≥800 lux
Engineering basis
What makes the difference in daily operation
Supply and exhaust on two fans
On the PURE 200 and 360, an exhaust fan alone draws air from the workshop. Here a supply fan pushes 15,000 m³/h into the ceiling plenum and an exhaust fan draws the same volume out through the floor, so the airflow in the room is controlled at both ends.
A full-grille base
Five grille rows across the whole base spread extraction over the entire floor, so no corner is left where dust settles around the part.
Specifications
INTECH PURE 500 specification table
| Specification | Value |
|---|---|
| Type | prep room with front and side PVC curtains and a rear wall |
| Internal dimensions L×W×H (mm) | 6900×4000×2650 |
| External dimensions L×W×H (mm) | 8150×4000×3430 |
| Draft direction | down draft through the base |
| Fans | supply fan 4 kW and exhaust fan 4 kW |
| Air capacity (m³/h) | 15,000 per fan |
| Fan pressure (Pa) | 800 |
| Base | full metal grille base (5 rows) |
| Filtration | pre-filter · high-efficiency ceiling filter in a full ceiling plenum · fibreglass exhaust filter |
| Curtains | front and side PVC curtains on an aluminium track |
| Rear wall | 50 mm flame-resistant EPS panel, 0.426 mm coloured steel on both faces |
| Roof | galvanised steel |
| Lighting | 24 ceiling LED fittings at 16 W, ≥800 lux |
| Control box | lighting · spraying · time setting · fault indicator · emergency stop · alarm |
| Total power (kW) | 9.5 |
| Voltage | 380 V 3-phase 60 Hz |
How it differs
How the INTECH PURE 500 differs from its nearest model
The PURE 360 is the same room with down draft and an exhaust fan alone, on a base of two grille rows and three embossed rows, at 5.5 kW.
The PURE 200 has a rear side draft and stands on the floor with no metal base.
The 6900×4000×2650 mm room, the curtains, the ceiling plenum and the 15,000 m³/h fan rating are the same on the PURE 200, 360 and 500.
Industries
Sectors this model serves
These are the industries the INTECH PURE 500 serves specifically, not the family as a whole.
FAQ
Common questions about the INTECH PURE 500
Why does the PURE 500 have two fans?
The supply fan pushes air into the ceiling plenum and the exhaust fan draws it out through the base, so incoming and outgoing air are both managed rather than relying on workshop air alone.
What is the air capacity of the PURE 500 prep station?
15,000 m³/h per fan at 800 Pa: a 4 kW supply fan and a 4 kW exhaust fan.
What electrical supply does the PURE 500 need?
9.5 kW in total on a 380 V, 3-phase, 60 Hz supply.
How does the PURE 500 differ from the PURE 360?
By the added supply fan and the full-grille base. Dimensions, curtains and ceiling plenum are identical.
What are the room dimensions?
6900×4000×2650 mm inside and 8150×4000×3430 mm outside.
