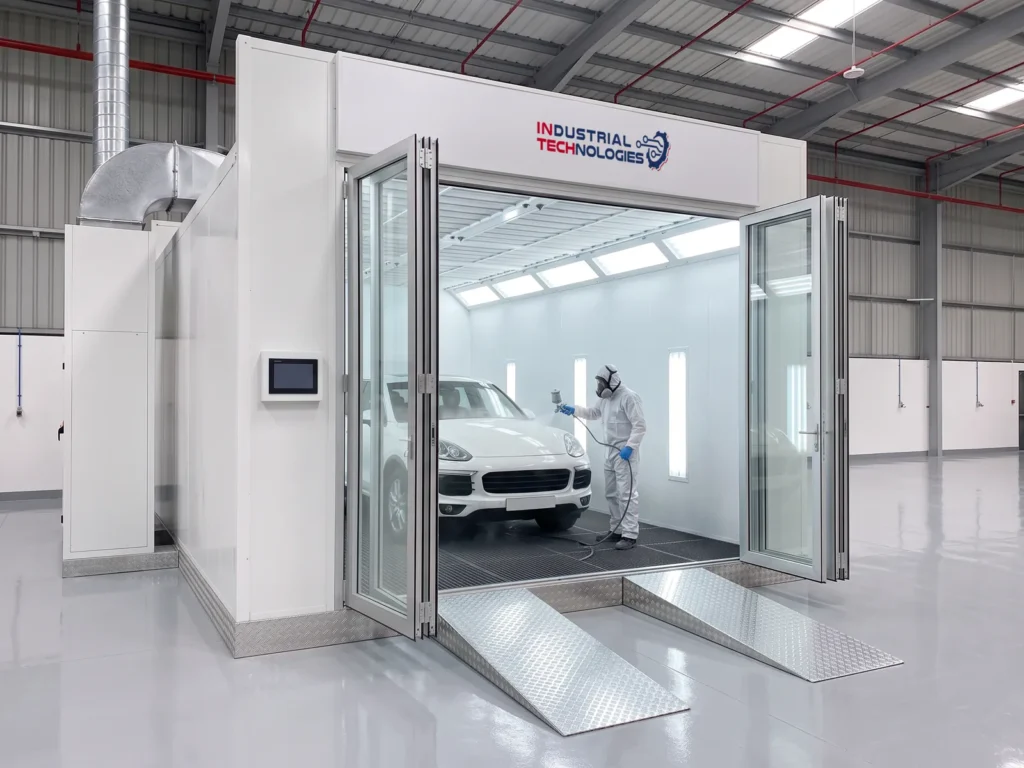

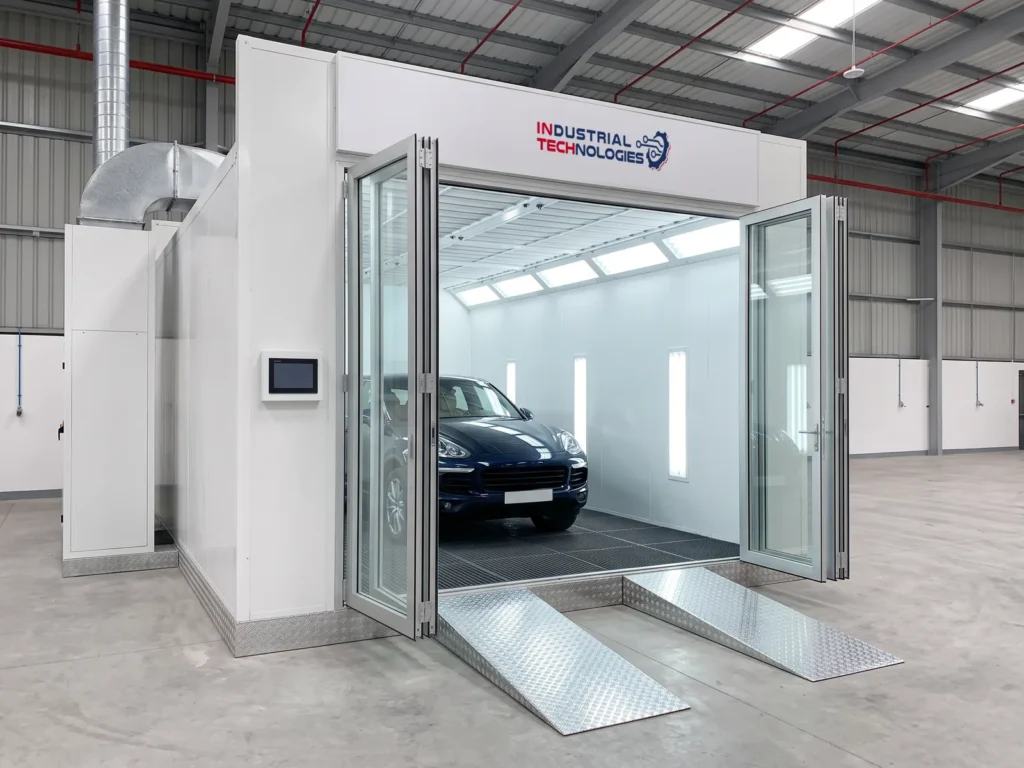

INTECH X960 paint booth with ROCKWOOL walls and PLC control
The top configuration of the INTECH range: 50 mm ROCKWOOL walls, PLC touch-screen control with star-delta starting, a four-leaf glass main door and two turbine fans moving 25,000+25,000 m³/h. Aimed at the facility that needs a fire-resistant wall together with a controlled cycle.
Overview
This model at a glance
Key features
What the standard supply includes
- 50 mm ROCKWOOL walls on a 0.426 mm steel skin
- PLC touch-screen control and star-delta motor starting

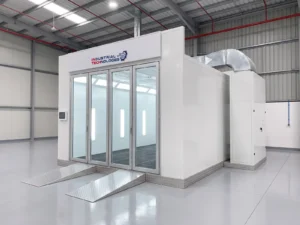

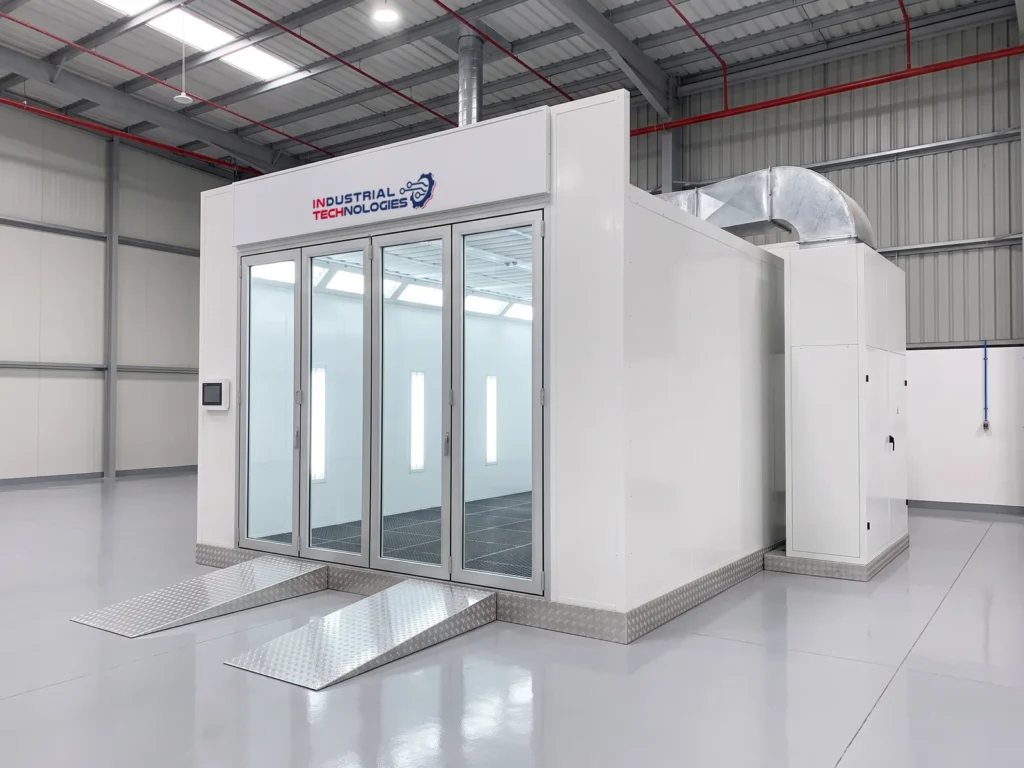

- four-leaf 3000×2600 mm main door with large glass panels
- 7.5 kW turbine supply fan and 7.5 kW turbine exhaust fan at 650 Pa
- pneumatic damper and a filter pressure gauge
- full-grille base of five rows, 300 mm high

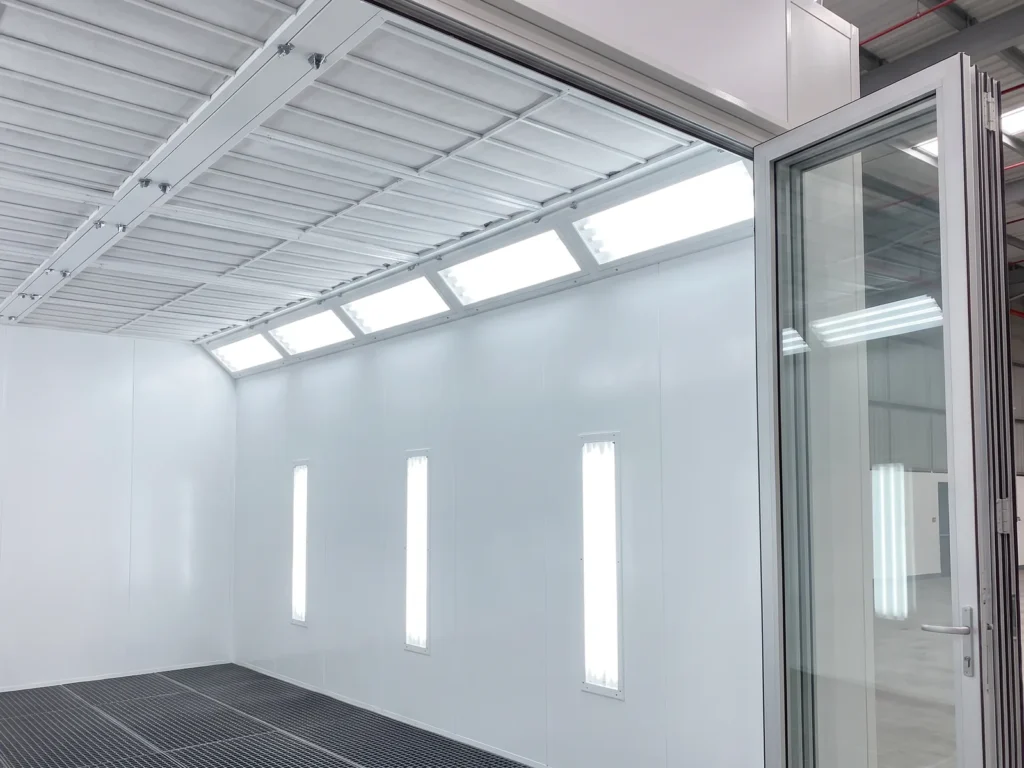

- 45° LED lighting: 32 ceiling and 12 side fittings at 20 W
- argon-arc welded SUS304 heat exchanger and Riello G20 burner, 200,000 kcal/h
Engineering basis
What makes the difference in daily operation
A mineral-wool wall with top-class extraction
The INTECH X360 carries the ROCKWOOL wall on the base-class figures; this model carries it on 25,000+25,000 m³/h and a full-grille base, putting the fire-resistant wall together with the highest extraction in the range.
PLC cycle and star-delta starting
The touch screen runs the paint and bake modes and sets temperature and time for each stage, and the two motors start in star and switch to delta to ease start-up current.
Specifications
INTECH X960 specification table
| Specification | Value |
|---|---|
| Internal dimensions L×W×H (mm) | 6900×4000×2650 |
| External dimensions L×W×H (mm) | 7000×5300×3400 |
| Main door (mm) | 3000×2600 |
| Main door type | four-leaf with large glass panels |
| Work door (mm) | 800×2000 with observation glass and pressure relief above 10 Pa |
| Supply air (m³/h) | 25,000 |
| Exhaust air (m³/h) | 25,000 |
| Supply fan | turbine fan, 7.5 kW |
| Exhaust fan | turbine fan, 7.5 kW |
| Fan pressure (Pa) | 650 |
| Air speed (m/s) | 0.28 |
| Air changes per hour | 280 |
| Damper | pneumatic, switching paint and bake modes |
| Pressure gauge | round gauge in the control box showing filter loading |
| Filtration | non-woven pre-filter (above 15 μm) · high-efficiency ceiling filter (over 98% of particles above 5 μm) · EU2 fibreglass floor filter |
| Lighting | 45° LED fittings: 32 ceiling and 12 side, 20 W each, ≥800 lux |
| Heater / burner | Riello G20 diesel burner |
| Heat output (kcal/h) | 200,000 |
| Heat-up time | 5–7 minutes from 20 °C to 60 °C |
| Heat exchanger | SUS304, argon-arc welded |
| Chimney (m) | 5 |
| Wall type | 50 mm ROCKWOOL panels, 0.426 mm steel skin |
| Base | 300 mm high, 40×80 galvanised tube · full grille (5 rows) |
| Control system | PLC with touch screen running the cycle: paint · paint with rising temperature · bake · temperature and time setting · lighting · alarm · star-delta motor starting |
| Protection | emergency stop · over-temperature, overload and phase-loss protection · Schneider relays and contactors |
| Total power (kW) | 17 |
| Voltage | 380 V 3-phase 60 Hz |
| Entry ramps (mm) | 550×2000, embossed plate |
How it differs
How the INTECH X960 differs from its nearest model
The INTECH X900 is the same booth with EPS walls instead of ROCKWOOL.
The INTECH X360 carries the same ROCKWOOL wall, but with 20,000+18,000 m³/h, 11 kW, a standard control panel and an electric damper.
The 6900×4000×2650 mm chamber, the burner, the heat output and the ceiling filtration are the same across all INTECH models.
Industries
Sectors this model serves
These are the industries the INTECH X960 serves specifically, not the family as a whole.
FAQ
Common questions about the INTECH X960
How does the INTECH X960 differ from the INTECH X900?
Only in the wall: 50 mm ROCKWOOL here, EPS on the INTECH X900. PLC control, air and door are identical.
Both the INTECH X960 and X360 have ROCKWOOL walls — what separates them?
The INTECH X960 delivers 25,000+25,000 m³/h on 17 kW with PLC control, a glass door and a full-grille base; the INTECH X360 delivers 20,000+18,000 m³/h on 11 kW with a standard panel.
What does PLC control add?
A touch screen that runs the paint, paint-with-rising-temperature and bake modes and sets the temperature and duration of each stage.
What is the air capacity of the INTECH X960 paint booth?
25,000 m³/h supply and 25,000 m³/h exhaust, from two 7.5 kW turbine fans.
What electrical supply does the INTECH X960 need?
17 kW on a 380 V, 3-phase, 60 Hz supply.
